Features:

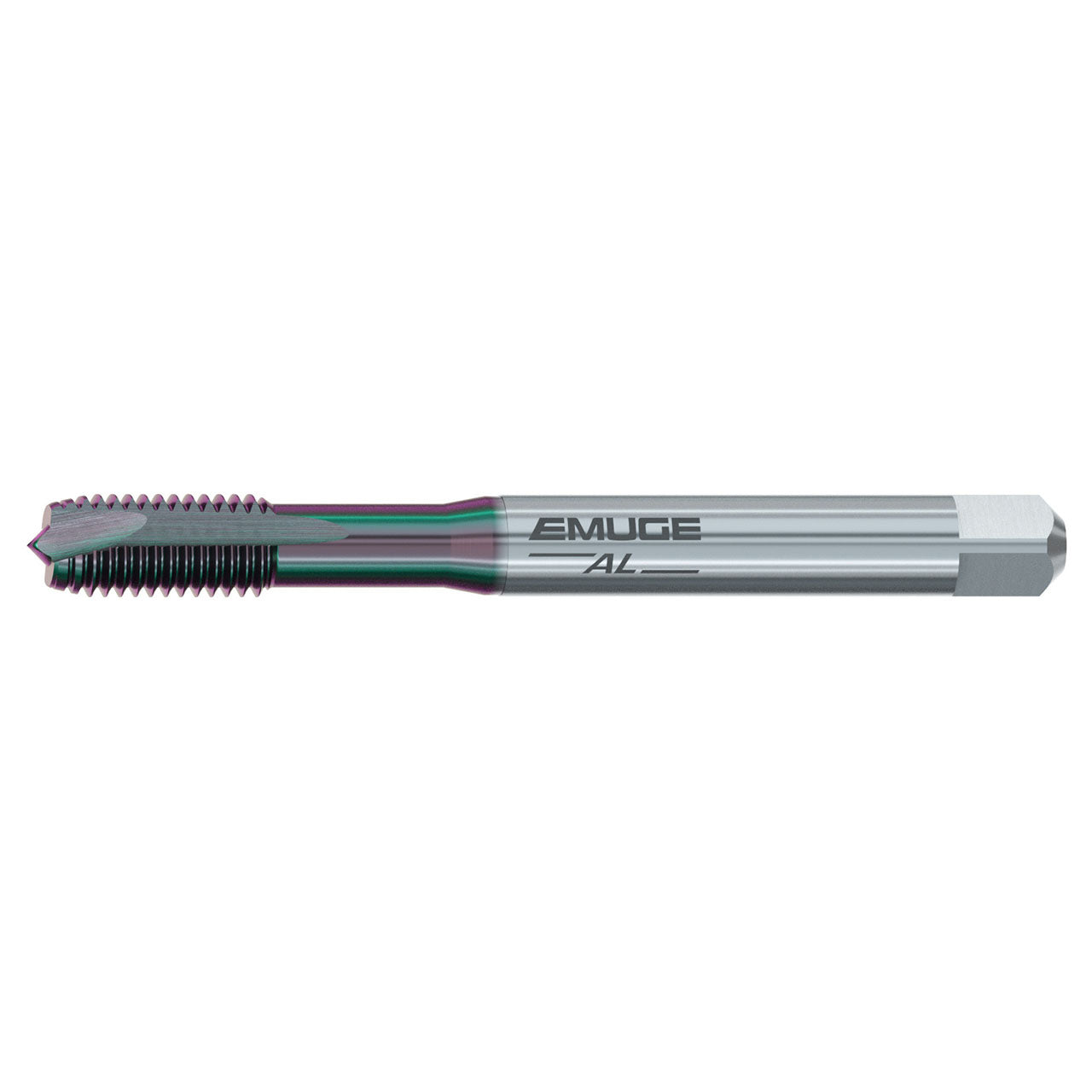

- The Enorm AL design is typically for blind hole threads in long chipping materials such as wrought aluminum alloys.
- The fast spiral flute (45 Degree) provides good chip removal from blind holes
- GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU203G10.5617 |
| Thread Size | 1/4"-20 |
| Thread Diameter Size | 1/4" |
| Thread Per Inch (TPI) | 20 TPI |
| Tap Square (Decimal Inch) | 0.110" |
| Thread Length (Decimal Inch) | 0.179" |
| Overall Length (Decimal Inch) | 3.543" |
| Length Group | DIN Length |
| Number of Flutes | 2 |
| Dimensional Standard | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | STI-UNC |
| Thread Tolerance Class | 3B |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | C |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-104 |
| Product Type | Spiral Point STI Tap |
