Features:

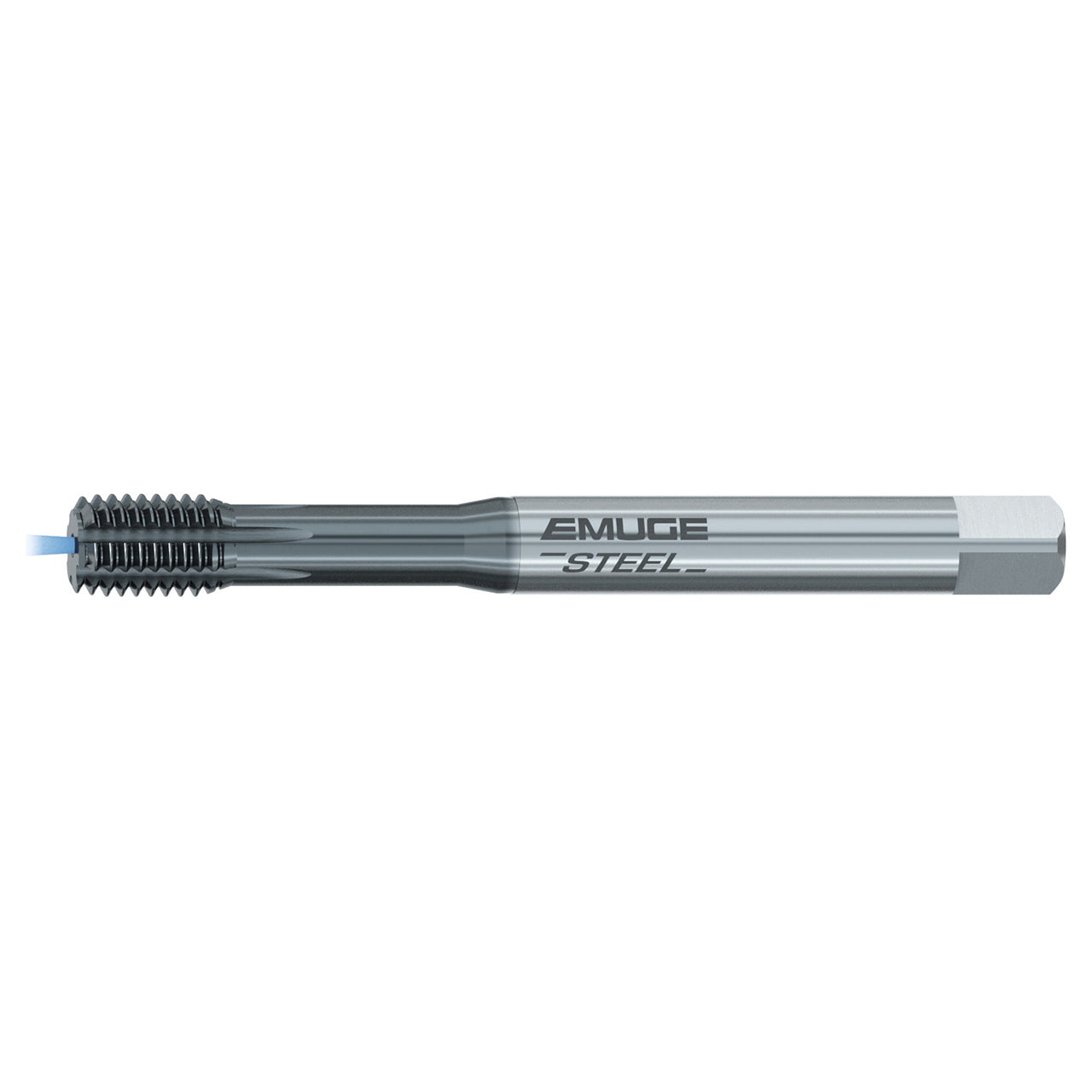

- The InnoForm Steel-H roll form tap is designed for high tensile strength materials
- Axial coolant fed to maximize chip evacuation and improve thread quality
- TICN-67 coating for less wear and longer tool life
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | B5236F00.0050 |
| Thread Size | M 5x0.8 |
| Thread Diameter Size | M 5 |
| Thread Standard | M |
| Thread Pitch (mm) | 0.80mm |
| Tap Square (mm) | 4.90mm |
| Thread Length (mm) | 8.00mm |
| Overall Length (mm) | 70.00mm |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Cutting Edge Material | HSSE-PM |
| Coating | TiCN-67 |
| Tool Type | EMUGE STEEL |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
