Features:

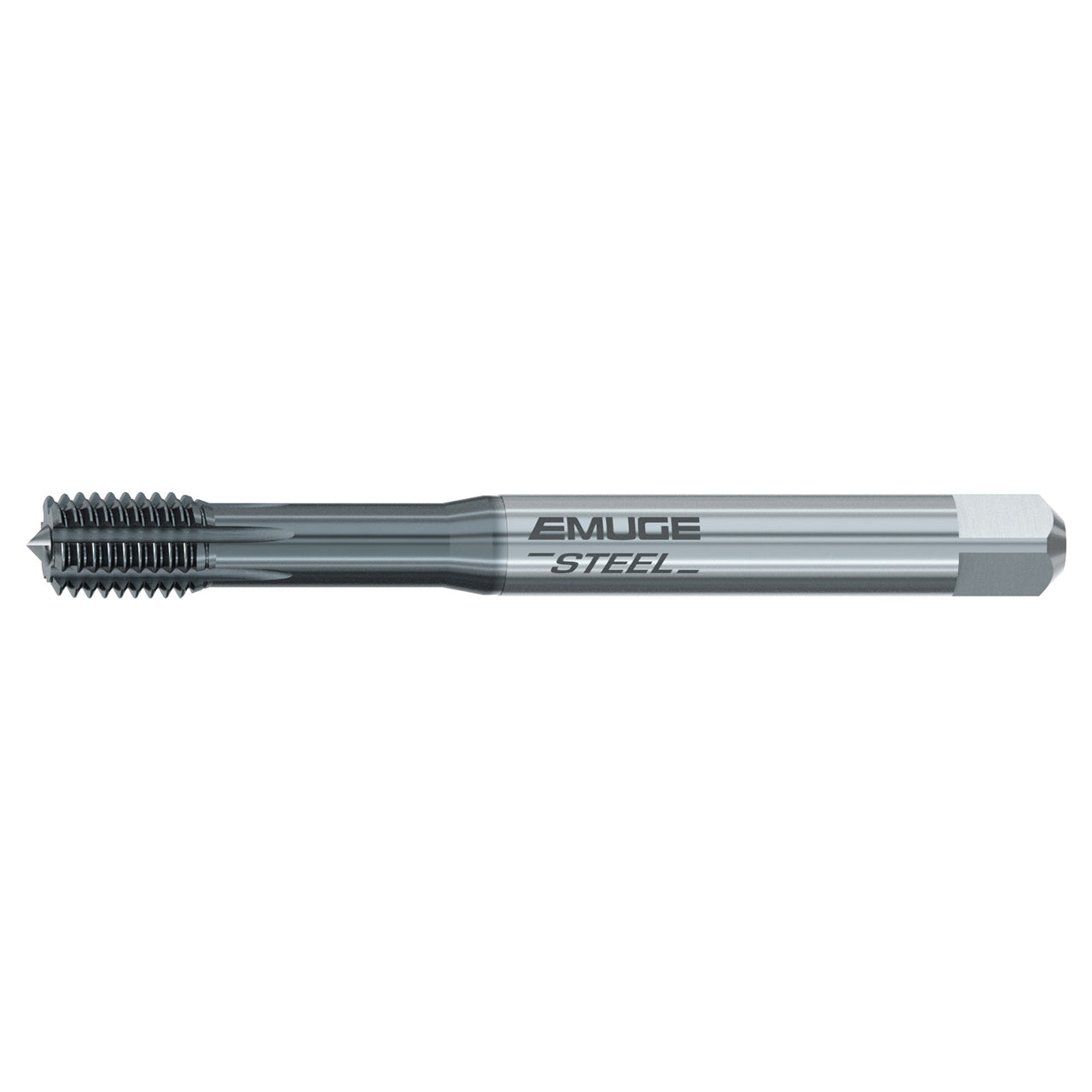

- The InnoForm Steel H roll form tap is designed for high strength steel materials
- Short threaded part and special polygon shape for less torque
- TICN-67 coating for less wear and longer tool life
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | B5216F00.0060 |
| Thread Size | M 6x1 |
| Thread Diameter Size | M 6 |
| Thread Standard | M |
| Thread Pitch (mm) | 1.00mm |
| Tap Square (mm) | 4.90mm |
| Thread Length (mm) | 10.00mm |
| Overall Length (mm) | 80.00mm |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Cutting Edge Material | HSSE-PM |
| Coating | TiCN-67 |
| Tool Type | EMUGE STEEL |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
