Features:

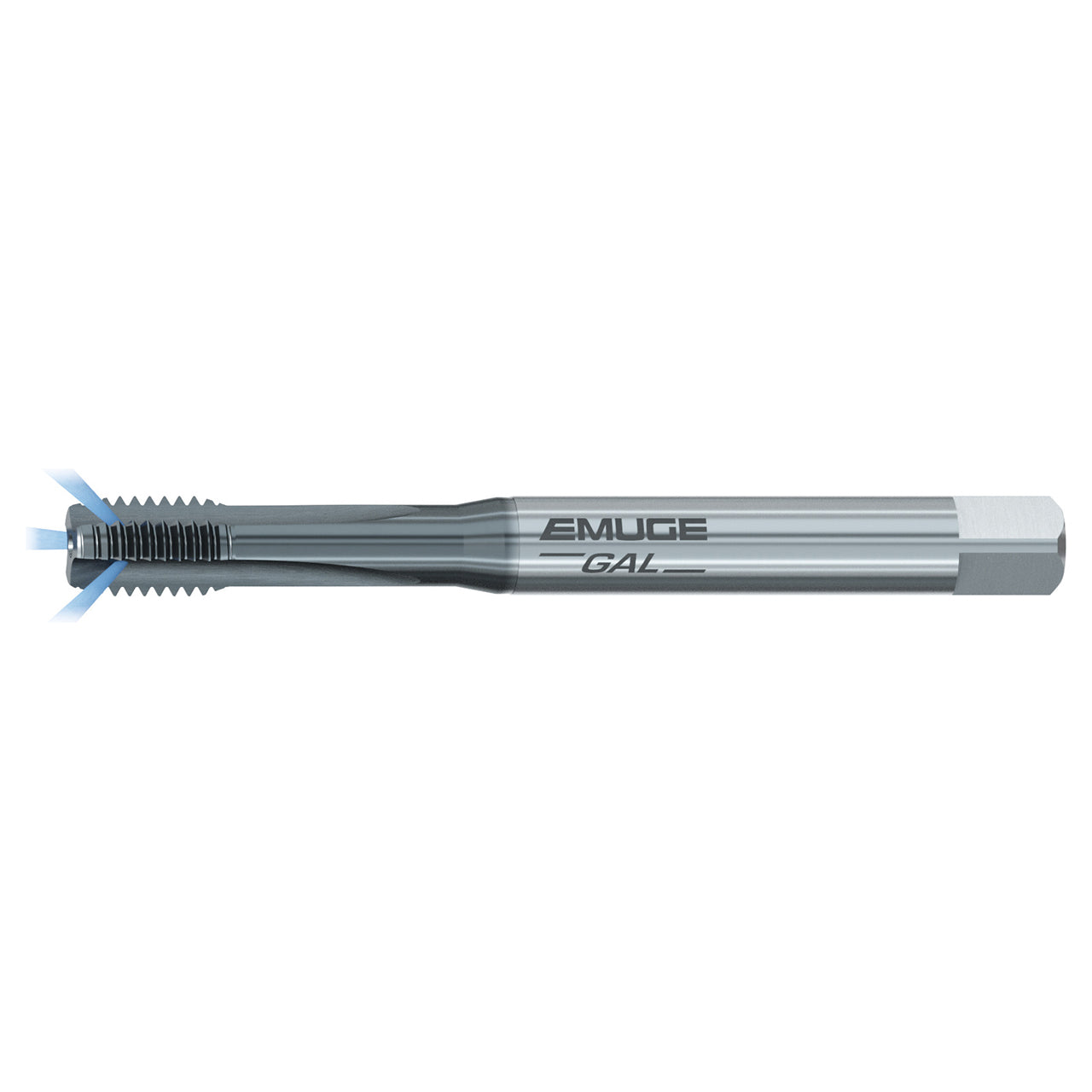

- Rekord A-GAL/E is a straight flute design best suited for short chipping cast aluminum material grades
- Radial coolant fed to maximize chip evacuation and improve thread quality
- TICN coated for additional wear resistance
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | B1099501.0050 |
| Thread Size | M 5x0.8 |
| Thread Diameter Size | M 5 |
| Thread Standard | M |
| Thread Pitch (mm) | 0.80mm |
| Tap Square (mm) | 4.90mm |
| Thread Length (mm) | 15.00mm |
| Overall Length (mm) | 70.00mm |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 1.5-2 P |
| Tap Chamfer Form | E |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Radial |
| Number of Flute | 3 |
| Cutting Edge Material | HSSE |
| Coating | TICN |
| Tool Type | Rekord GAL |
| Application | Straight Flute Taps |
| Product Type | Straight Flute Tap |
