Features:

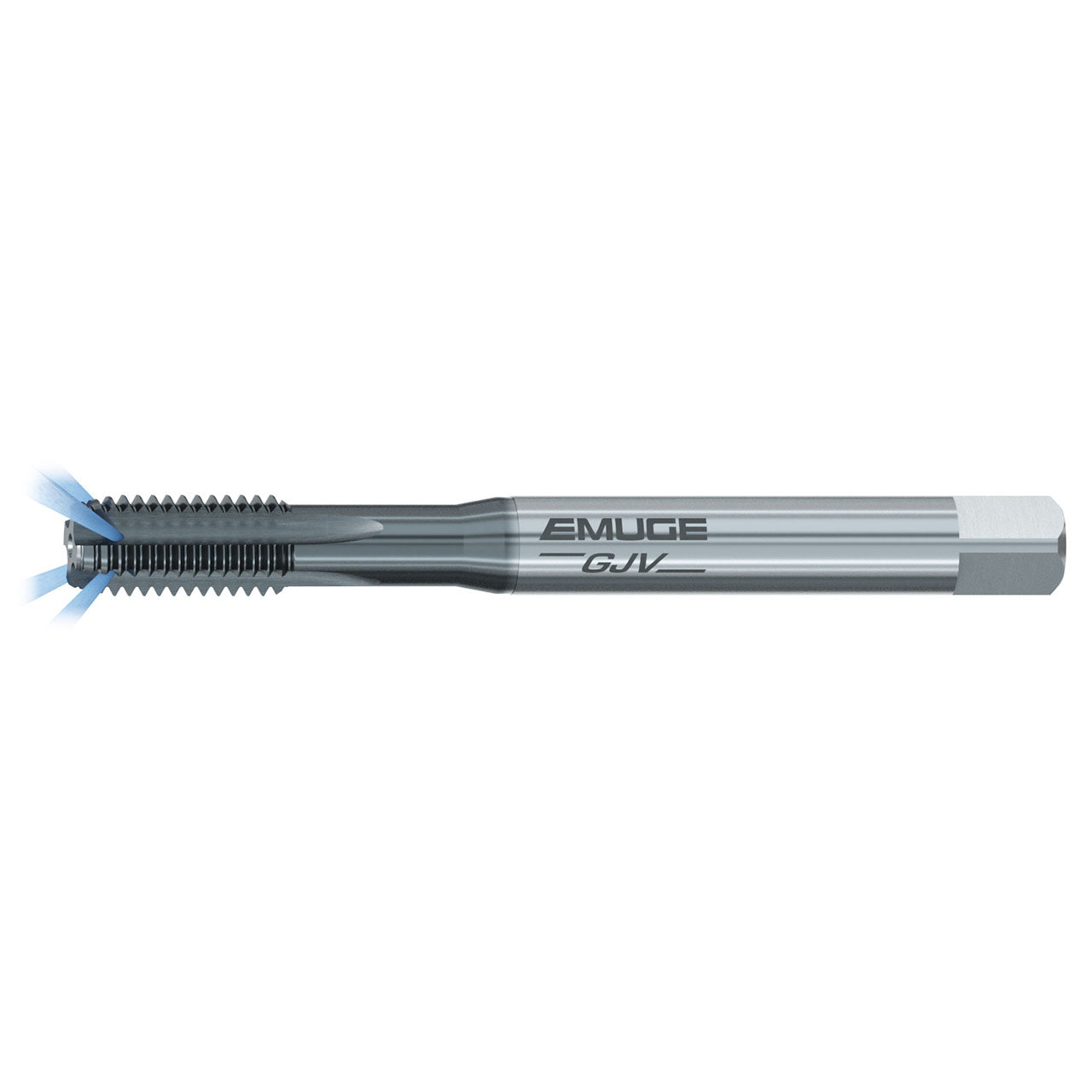

- HSSE-PM tap for applications in cast iron with vermicular graphite.
- Radial coolant fed to maximize chip evacuation and improve thread quality
- TICN coated for additional wear resistance
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | B106R501.0050 |
| Thread Size | M 5x0.8 |
| Thread Diameter Size | M 5 |
| Overall Length (mm) | 70.00mm |
| Length Group | DIN Length |
| Flute Helix Angle (Degree) | 15 Degree |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | M |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 2 -3 P |
| Tap Chamfer Form | C |
| Coolant Supply Property | Internal |
| Coolant Fed | Radial |
| Cutting Edge Material | HSSE-PM |
| Coating | TICN |
| Product Type | Straight Flute Tap |
