Features:

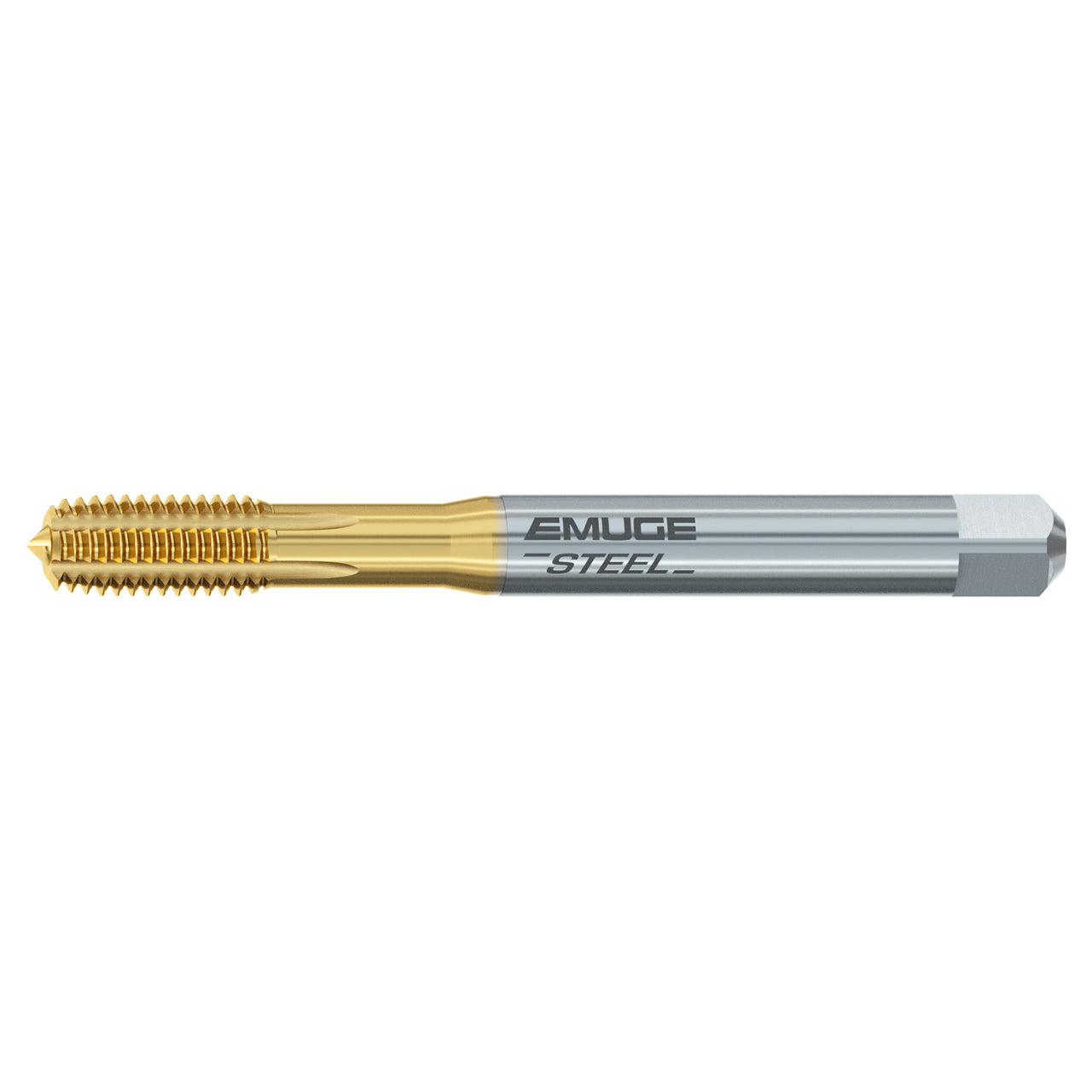

- The Druck Steel roll form tap is a universal design for the chipless production of internal threads, blind and though hole
- Oil grooves to avoid cold pressure welding, especially recommended for through hole threads and horizontal machining
- TIN coated for additional heat and wear resistance
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | B0921400.0026 |
| Thread Size | M 2.6x0.45 |
| Thread Diameter Size | M 2.6 |
| Thread Standard | M |
| Thread Pitch (mm) | 0.45mm |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Cutting Edge Material | HSSE |
| Coating | TIN |
| Tool Type | EMUGE STEEL |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
