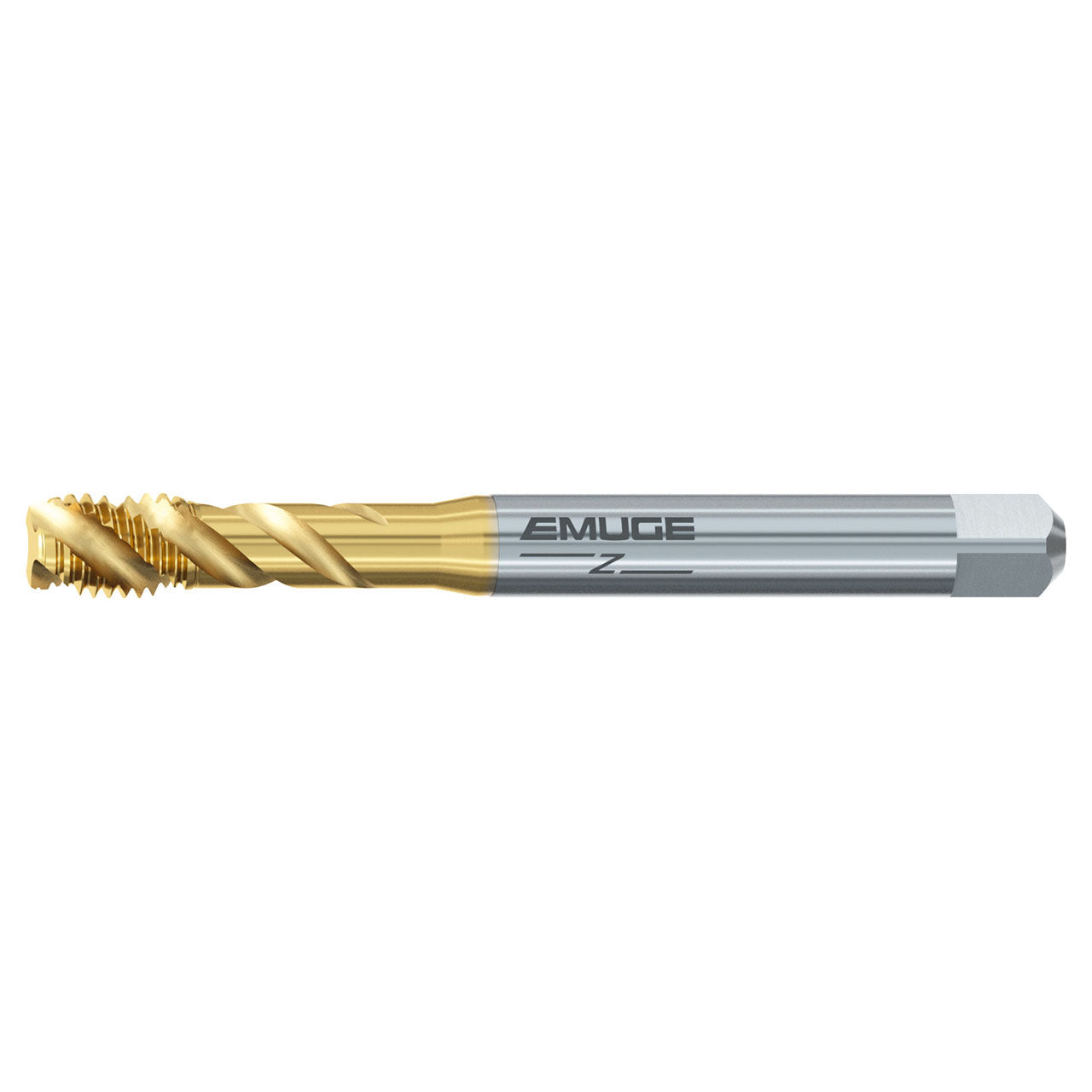

Features:
- The Enorm Z/E design is typically for blind hole threads in long chipping materials.
- The fast spiral flute provides good chip removal from blind holes
- TIN coated for additional heat and wear resistance
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | B0513720.0040 |
| Thread Size | M 4x0.7 |
| Thread Diameter Size | M 4 |
| Overall Length (mm) | 63.00mm |
| Length Group | DIN Length |
| Flute Helix Angle (Degree) | 45 Degree |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Thread Standard | M |
| Thread Tolerance Class | ISO 3/6G |
| Tap Chamfer | 1.5 -2 P |
| Tap Chamfer Form | E |
| Class of Fit | Oversize |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | TiN |
| Product Type | Spiral Flute Tap |
