Features:

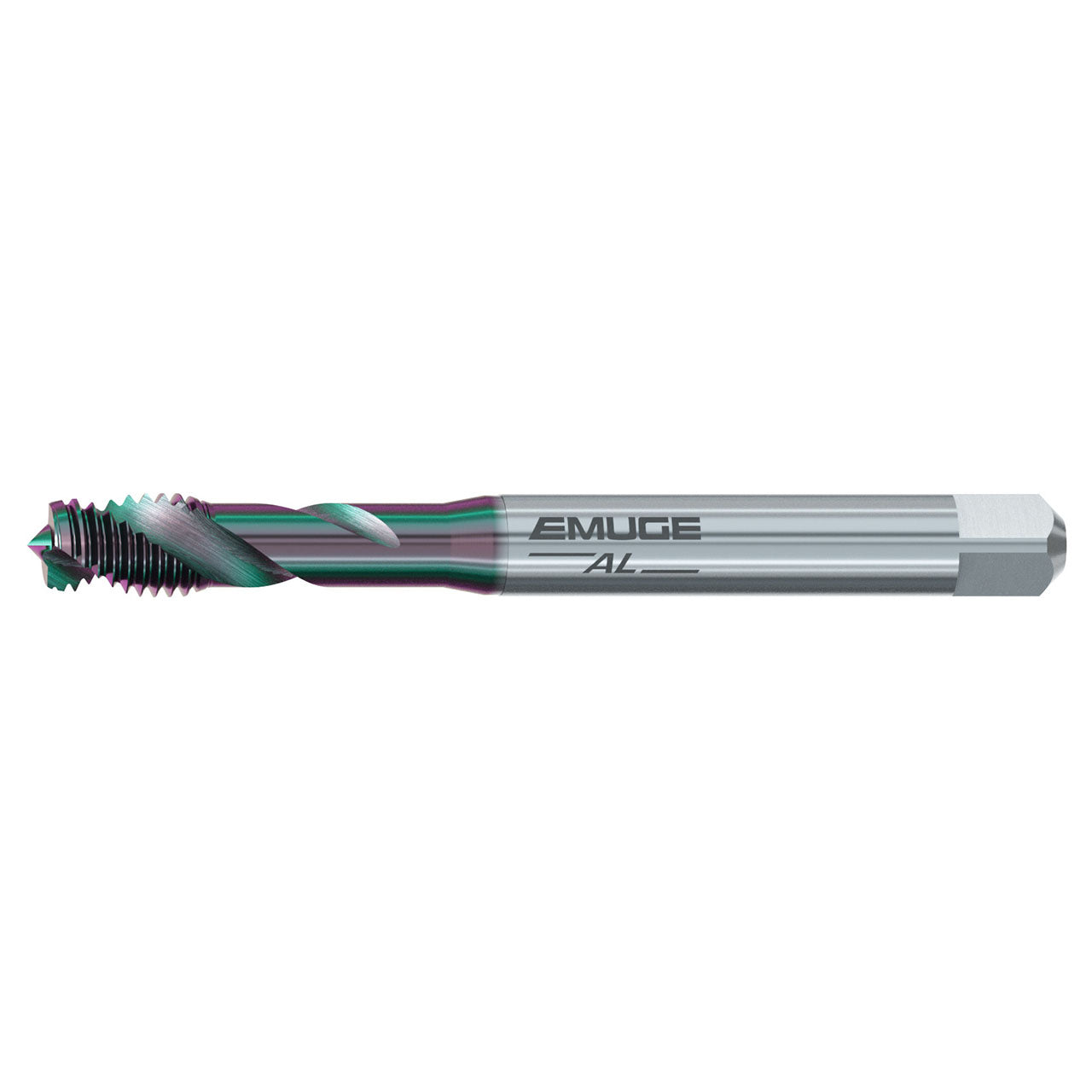

- The Enorm AL design is typically for blind hole threads in long chipping materials.
- The fast spiral flute provides good chip removal from blind holes
- GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | B0503G00.0080 |
| Thread Size | M 8x1.25 |
| Thread Diameter Size | M 8 |
| Tap Square (mm) | 8.00mm |
| Thread Length (mm) | 18.00mm |
| Overall Length (mm) | 90.00mm |
| Length Group | DIN Length |
| Number of Flutes | 2 |
| Flute Helix Angle (Degree) | 45 Degree |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Thread Standard | M |
| Thread Tolerance Class | ISO 2/6H |
| Tap Chamfer | 2 -3 P |
| Tap Chamfer Form | C |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-104 |
| Product Type | Spiral Flute Tap |
