Features:

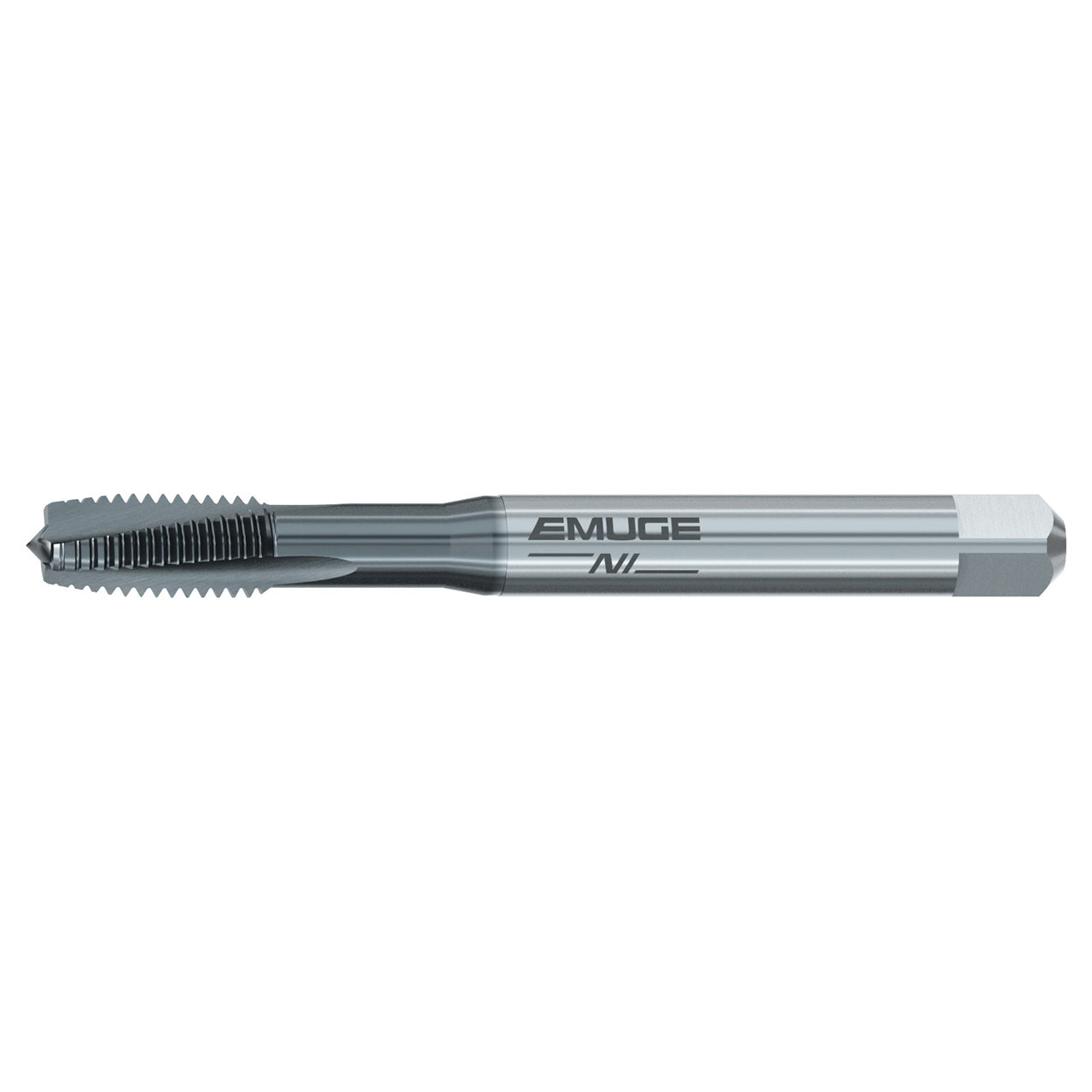

- Rekord C-NI plug style taps with Advanced Left-Hand Helical Flute Form and chamfer geometry
- Optimize chip evacuation in the forward direction and add strength to the cutting teeth for enhanced tool life and process security
- HSSE-PM powdered metal tool base material for longer tool life
- For through hole applications
Product Specifications
| Manufacturer Part Number | B030J411.1229 |
| Thread Size | MJ 3 x 0.5 |
| Thread Diameter Size | MJ 3 |
| Thread Standard | MJ |
| Thread Pitch (mm) | 0.50mm |
| Tap Square (mm) | 2.70mm |
| Thread Length (mm) | 11.00mm |
| Overall Length (mm) | 56.00mm |
| Tap Chamfer | 4-5 P |
| Tap Chamfer Form | D |
| Class of Fit | 4HX |
| Dimensional Standards | DIN / DIN |
| Shank Tolerance | h9 |
| Flute Direction | Left Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Flute Helix Angle (Degree) | 8 Degree |
| Cutting Edge Material | HSSE-PM |
| Coating | TICN |
| Tool Type | EMUGE NI |
| Application | Spiral Flute Taps |
| Product Type | Spiral Flute Tap |
