Features:
- Aero-HSF taps are designed for aerospace fastener threading but can be used in similar applications.
- Longer tool life and more consistent thread quality
- ANSI/ANSI taps manufactured to ANSI length and ANSI shank dimension
Product Specifications

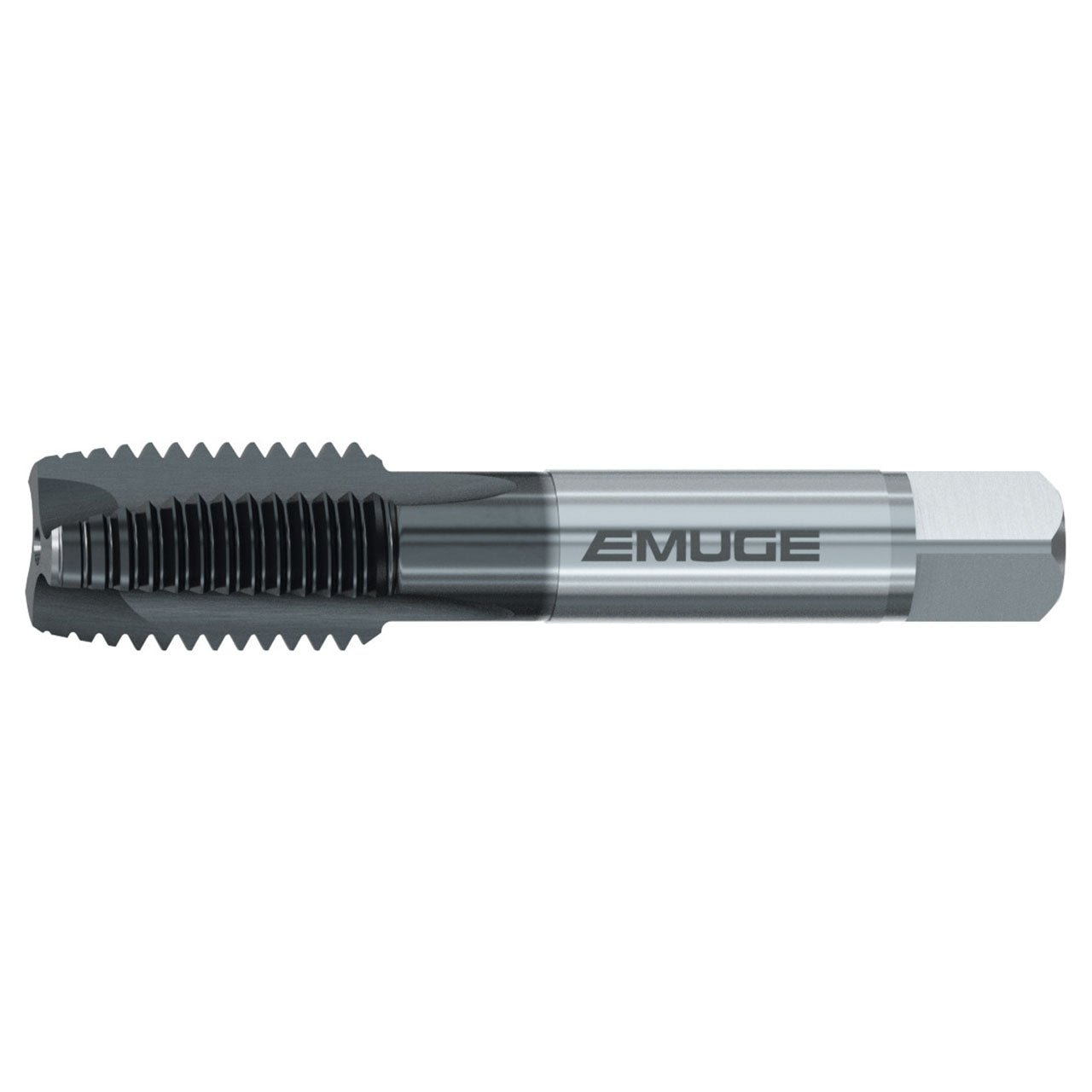

| Manufacturer Part Number | AX321006.5052 |
| Thread Size | 1"-12 |
| Thread Diameter Size | 1" |
| Thread Per Inch (TPI) | 12 TPI |
| Thread Length (Decimal Inch) | 1.102" |
| Overall Length (Decimal Inch) | 5.125" |
| Length Group | ANSI Length |
| Number of Flutes | 4 |
| Dimensional Standard | ANSI/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | UNF |
| Thread Tolerance Class | H8 |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | B |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-1 |
| Product Type | Straight Flute Tap |
