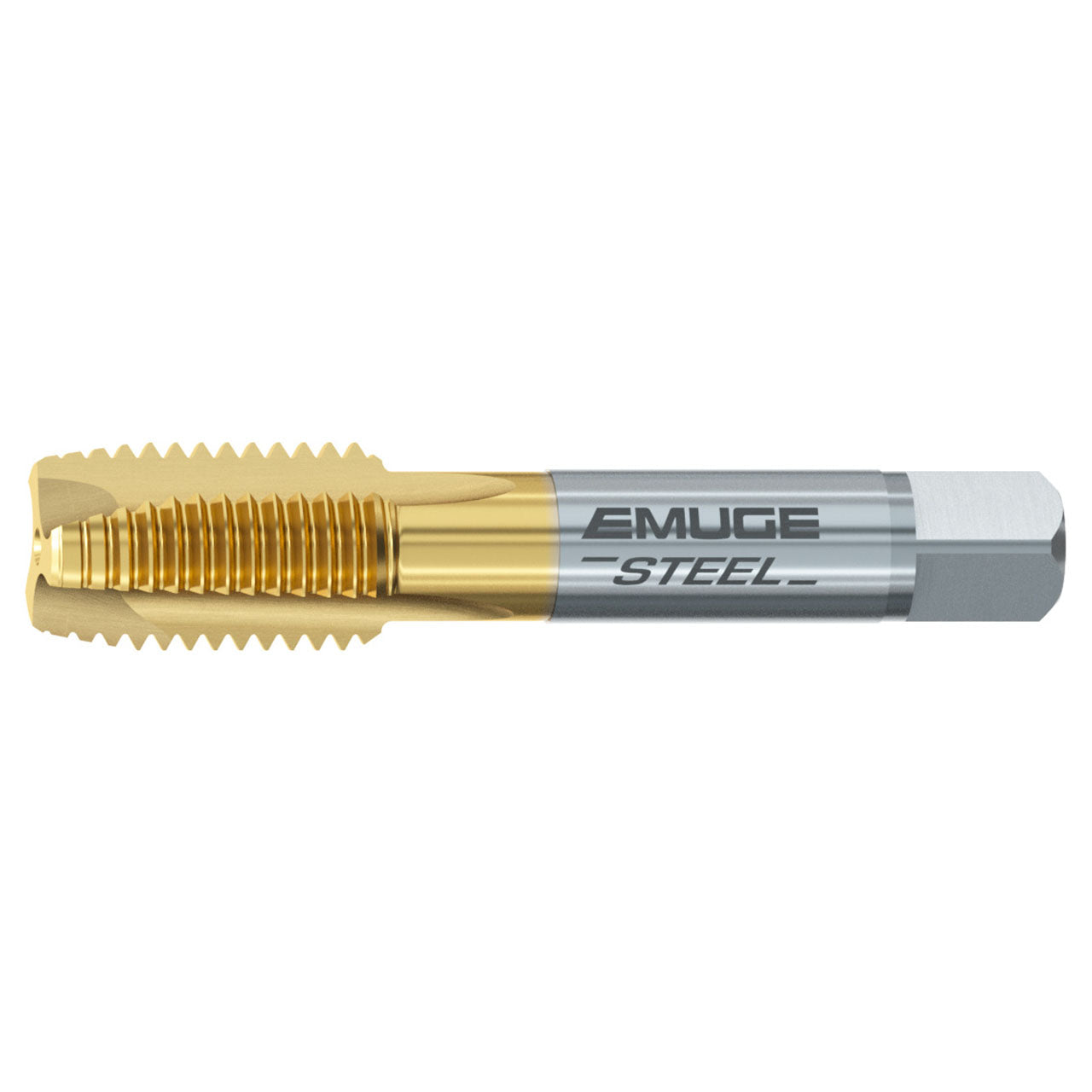

Features:
- Rekord B-Steel-L design is typically for through hole applications in long-chipping materials.
- Specially adapted flute shape, rake angle and relief angle for long tool life
- ANSI/ANSI taps manufactured to ANSI length and ANSI shank dimension
- TIN coated for heat and wear resistance
Product Specifications
| Manufacturer Part Number | AU208400.0050 |
| Thread Size | M 5x0.8 |
| Thread Diameter Size | M 5 |
| Tap Square (Decimal Inch) | 0.152" |
| Thread Length (Decimal Inch) | 0.591" |
| Overall Length (Decimal Inch) | 2.374" |
| Length Group | ANSI Length |
| Number of Flutes | 3 |
| Dimensional Standard | ANSI/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | M |
| Thread Tolerance Class | ISO 2/6H |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | B |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | TiN |
| Product Type | Straight Flute Tap |
