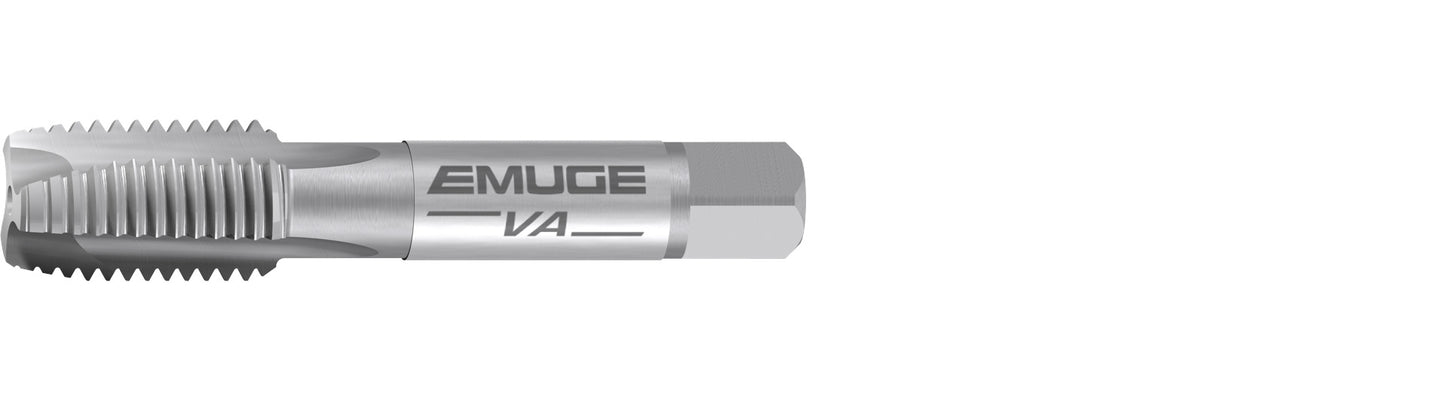

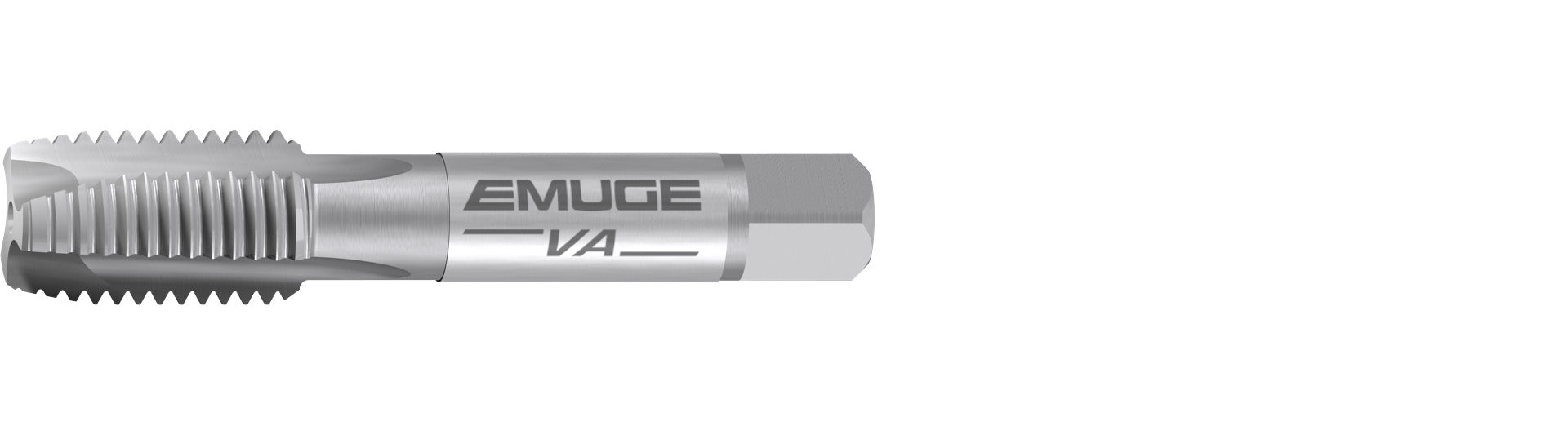

Features:
- For production of internal threads
- Tool for different thread sizes and pitches with correct thread profile
Product Specifications
| Chamfer | 4-5 P |
| Chamfer Form | B |
| Class | 6H |
| Pitch | 2 |
| Size | M 14 |
| Thread Standard | M |
| Coolant Fed | No |
| Coating/Finish | NT |
| Material | HSSE |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 11 mm |
| Dimension Standards | DIN/DIN |
| Overall Length (mm) | 80 mm |
| Thread Length (mm) | 12 mm |
| Flute Direction | Right Hand |
