Features:

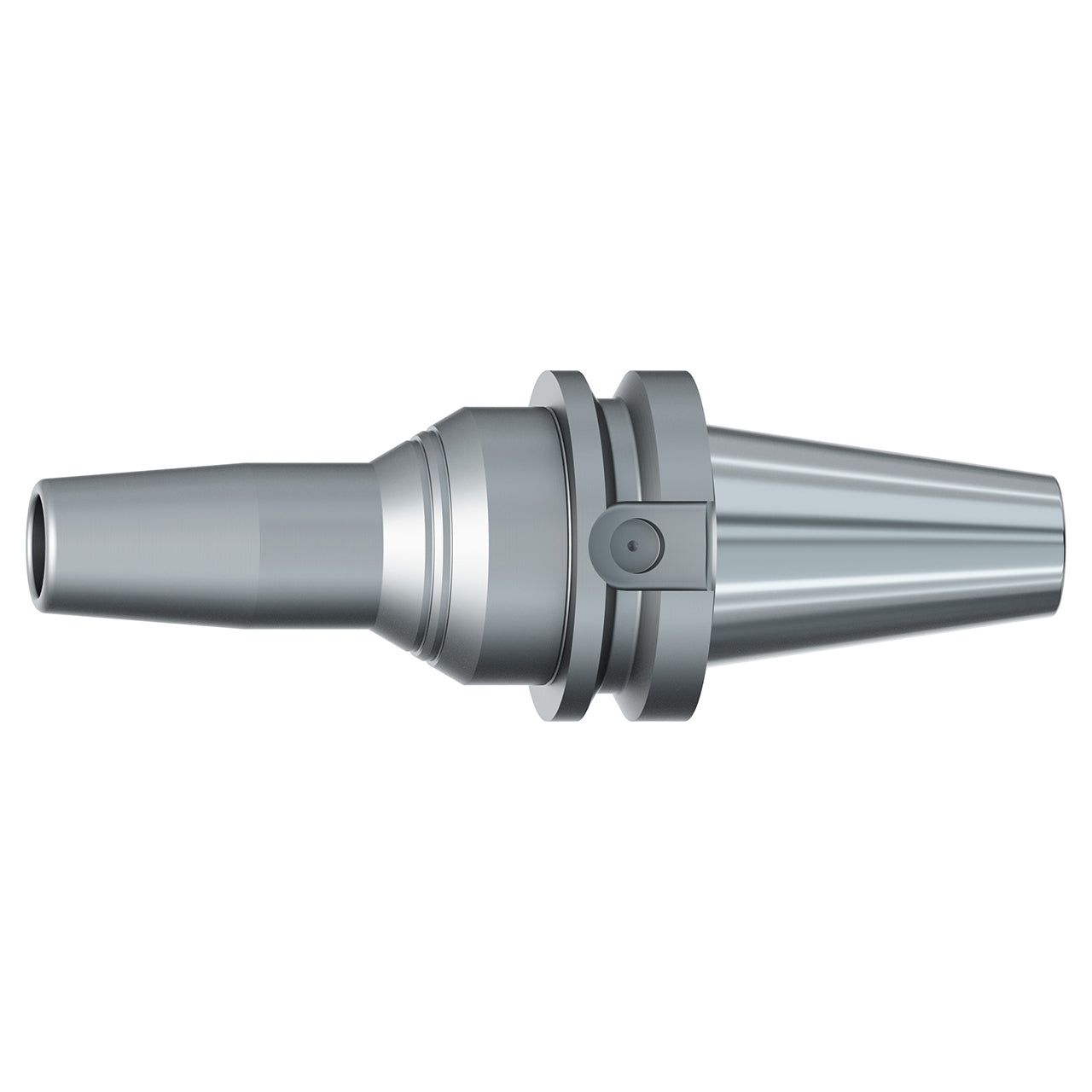

- Slim line version of the FPC tool holder system
- Slim nose design is well suited for 5-Axis machining
- Designed to provide extended reach with the gripping force and accuracy of the FPC tool holder system
Product Specifications
| Manufacturer Part Number | 6493S.401412 |
| Connection Diameter Workpiece Side (mm) | 2-14mm |
| Nose Diameter (mm) | 30.00mm |
| Projection Length (mm) | 120.00mm |
| Dimensional Standards | DIN ISO 7388-2 |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Tool Type | FPC Tool Holder |
| Application | Milling, Drilling, Thread Milling |
| Product Type | FPC Collet Holder |
