Features:
- Unique 1:16 worm gear design Provides high rigidity and clamping force
- Mechanical drive actuated with a hex wrench
- Provides high rigidity and clamping force

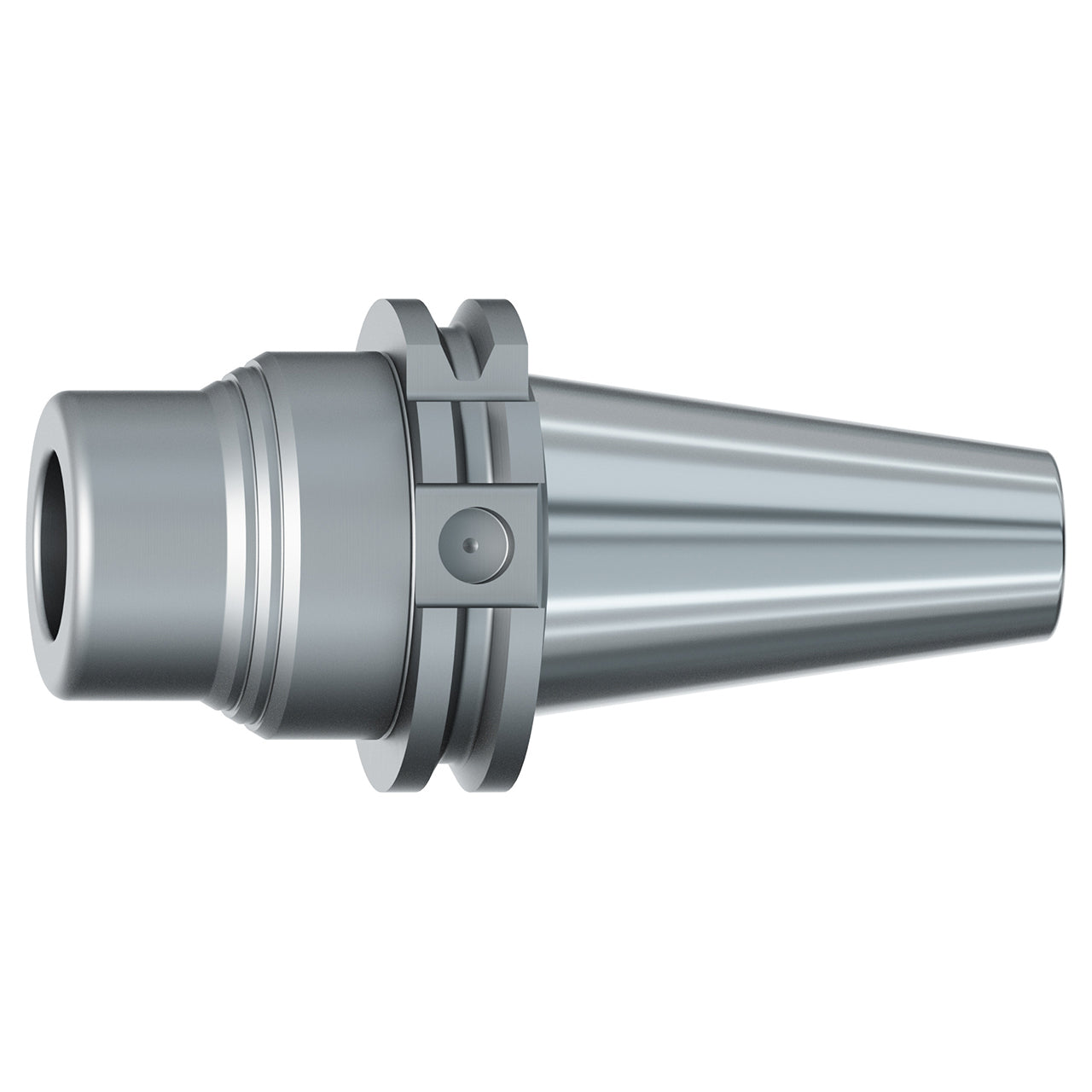

Product Specifications
| Manufacturer Part Number | 6491.502011 |
| Connection Diameter Workpiece Side (mm) | 2-20mm |
| Nose Diameter (mm) | 40.00mm |
| Projection Length (mm) | 112.00mm |
| Dimensional Standards | ISO 7388-1 |
| Connection Diameter Machine Side | FPC25 |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Tool Type | FPC Tool Holder |
| Application | Milling, Drilling, Thread Milling |
| Product Type | Collet Chuck Holder |
