Features:

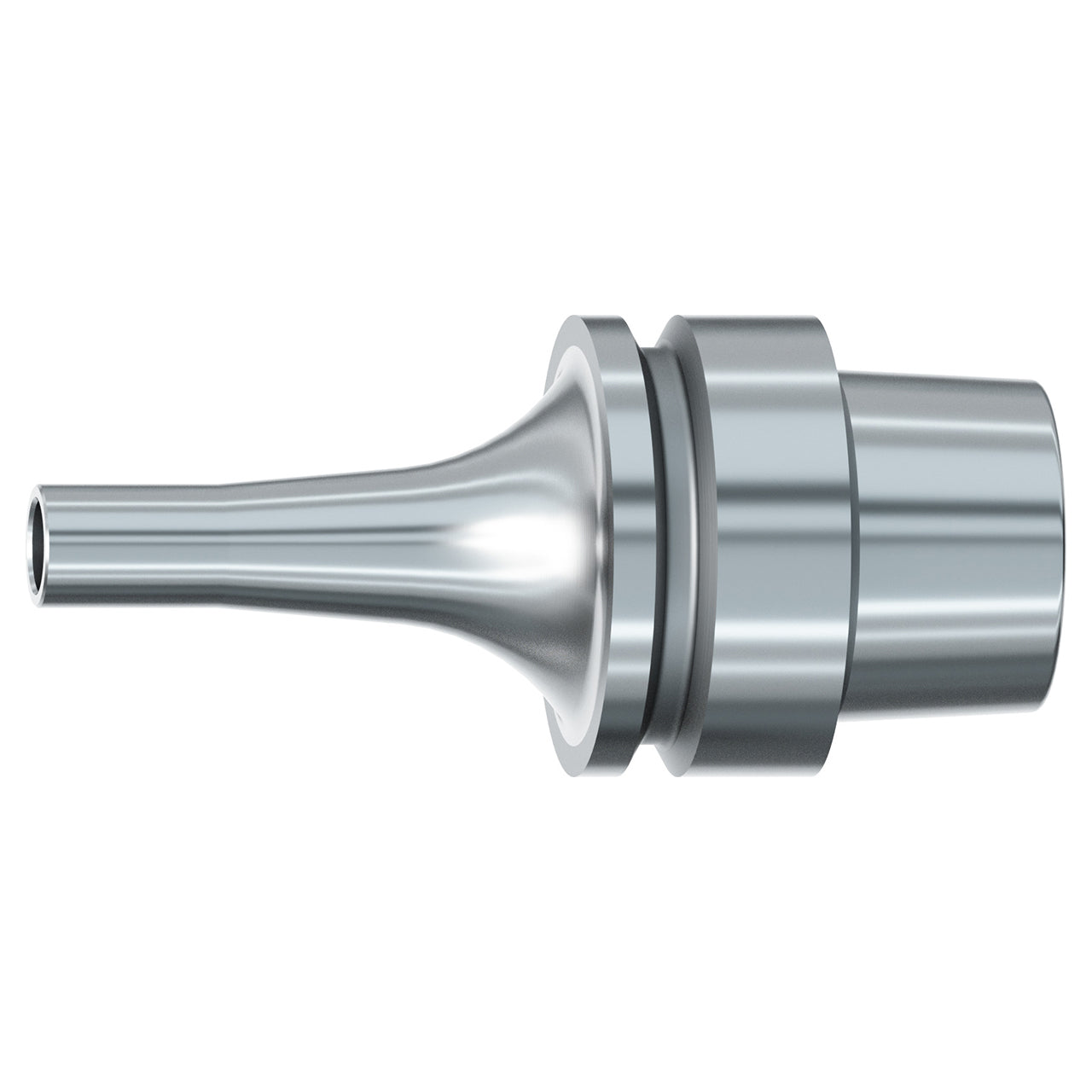

- Micro version of the FPC tool holder system
- Patented design delivers 3 tons of traction force Simple design is highly accurate
- Slim line design for additional reach capabilities
- Designed for tool shanks from 1mm to 6 mm Slim design is well suited to 5-axis machining
Product Specifications
| Manufacturer Part Number | 6399.500608 |
| Connection Diameter Workpiece Side (mm) | 1-6mm |
| Nose Diameter (mm) | 13.50mm |
| Projection Length (mm) | 85.00mm |
| Dimensional Standards | DIN 69893 |
| Connection Diameter Machine Side | HSK-80F |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Tool Type | FPC Tool Holder |
| Application | Milling, Drilling, Thread Milling |
| Product Type | Collet Chuck Holder |
