Features:

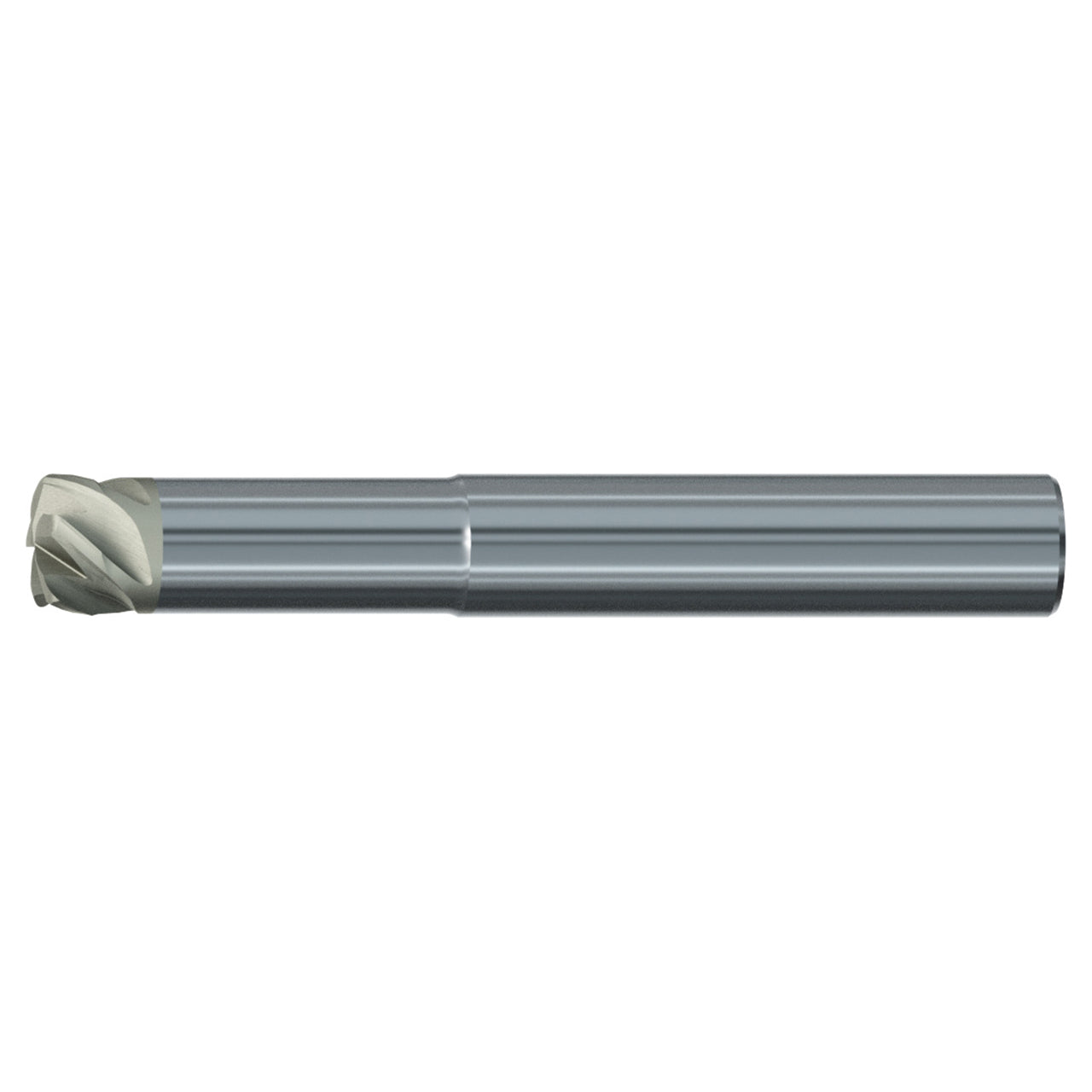

- End mill with ceramic cutting edge for roughing and pre-finishing in difficult-to-machine or hardened materials
- Ceramic brazed headed tool for high speed milling
- Suitable for high feed machining (HFC) with face cutting edge
- Ceramic end mills cut at 200 to 400% faster rates than carbide tools
Product Specifications
| Manufacturer Part Number | 3915.03125 |
| Cutting Diameter (Inch) | 5/16" |
| Cutting Diameter (Decimal Inch) | 0.313" |
| Overall Length (Inch) | 2-1/2" |
| Flute-Length (Inch) | 5/32" |
| Shank Tolerance | h5 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Connection Diameter Machine Side | HSK-A 125 |
| Flute Direction | Right Hand |
| Group Length | Standard Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 5 |
| Flute Helix Angle (Degree) | 40 Degree |
| Cutting Edge Material | Ceramic |
| Coating | Bright |
| Tool Type | Ceramic End Mill |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Corner Radius |
| Application | Roughing |
| Product Type | Corner Radius End Mill |
