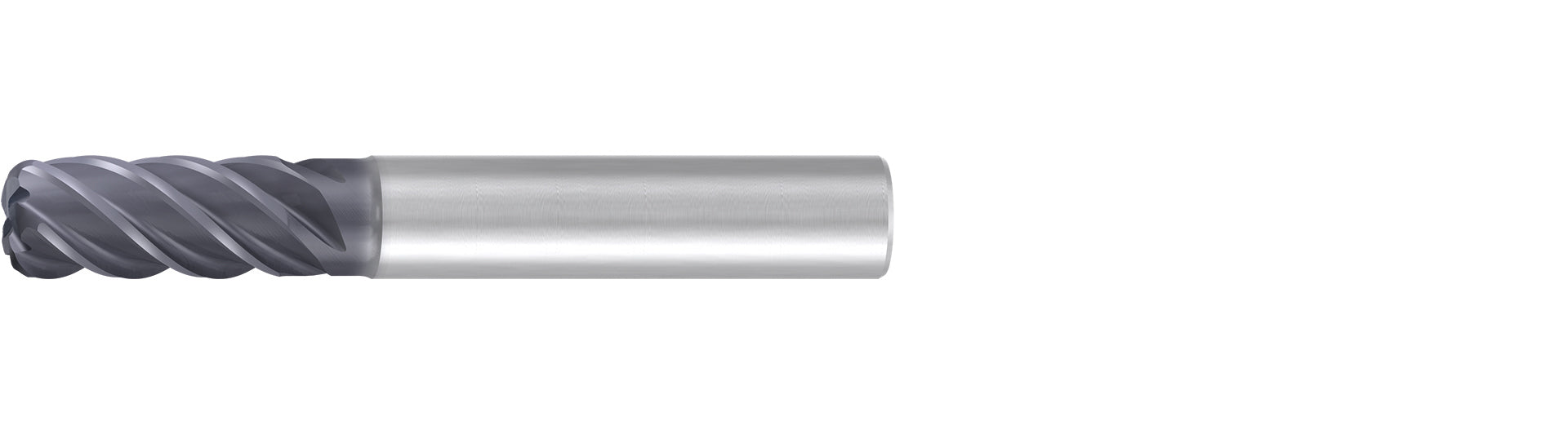

Features:
- High performance design for universal applications
- Provides maximum chip removal rates in a wide range of materials
Product Specifications
| Chamfer Form | |
| Size | 1" |
| Applicable Material | Universal Materials |
| Application | Finisher |
| Type | Corner Radius |
| Length Group | Standard |
| Coolant Fed | External |
| Coating/Finish | ALCR |
| Material | Carbide |
| Number of Flutes | 5 |
| Helix Angle (Degrees) | 35/38 Degree |
| Shank Diameter (mm) | 1" |
| Shank Tolerance | h6 |
| Shank Style | HA |
| Overall Length (mm) | 4" |
| Flute Length (mm) | 1-1/2" |
| Flute Direction | Right Hand |
| Corner Radius | 0.12 |
