Features:

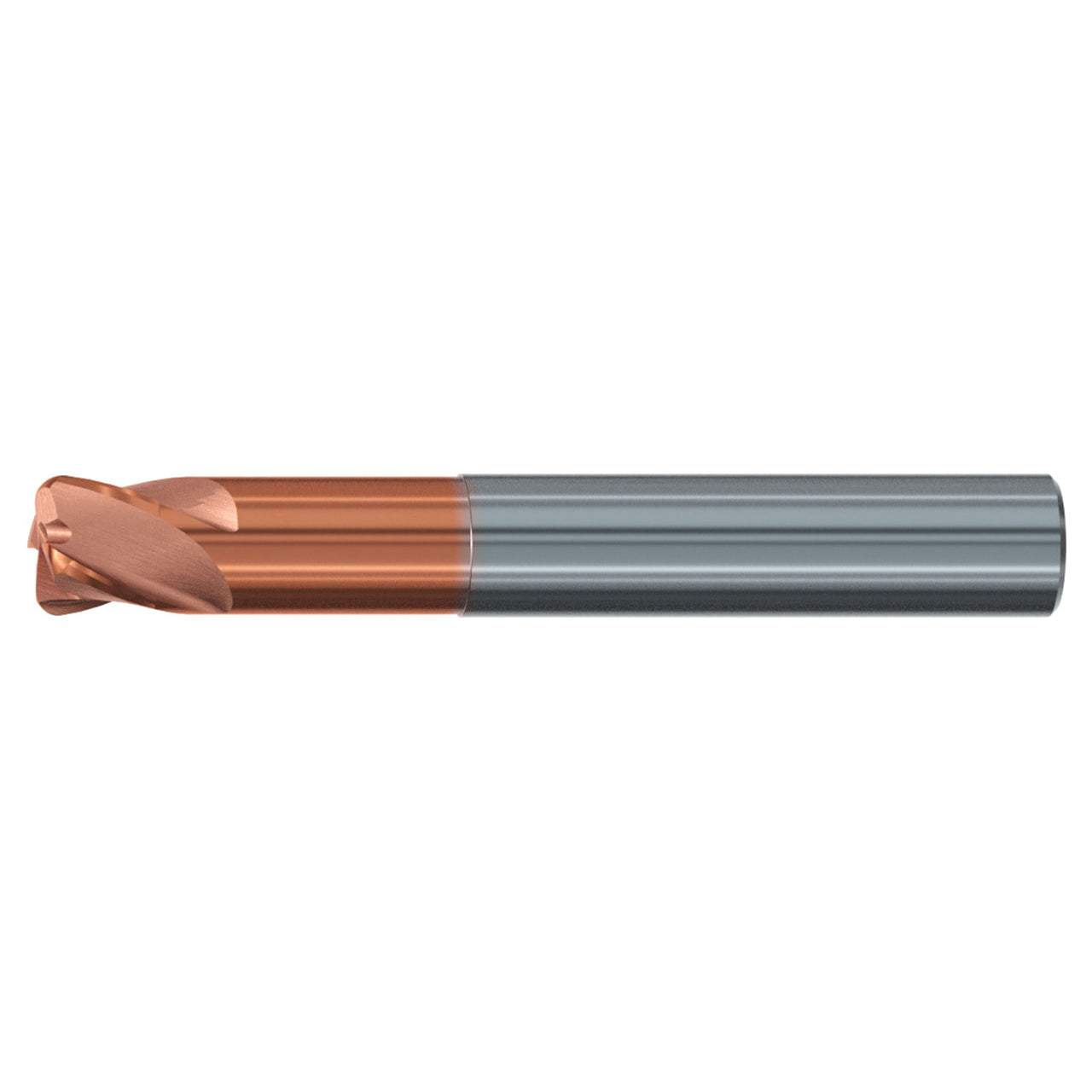

- TOP-Cut carbide torus nose end mill for roughing and finishing in almost all materials
- Very precise radius tolerance of ± 5µm for precise machining results and highest repetitive accuracy
- For universal use, suitable for high speed machining finishing
- TIALN coated for heat and wear resistance
Product Specifications
| Manufacturer Part Number | 3835A.010015 |
| Cutting Diameter (Decimal Inch) | 0.394" |
| Cutting Diameter (mm) | 10.00mm |
| Corner Radius (mm) | 1.50mm |
| Overall Length (mm) | 72.00mm |
| Flute Length (mm) | 8.00mm |
| Shank Tolerance | h5 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Stub Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 30 Degree |
| Cutting Edge Material | Carbide |
| Coating | TIALN |
| Tool Type | Torus |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | TORUS |
| Application | Finishing |
| Product Type | Torus End Mill |
