Features:

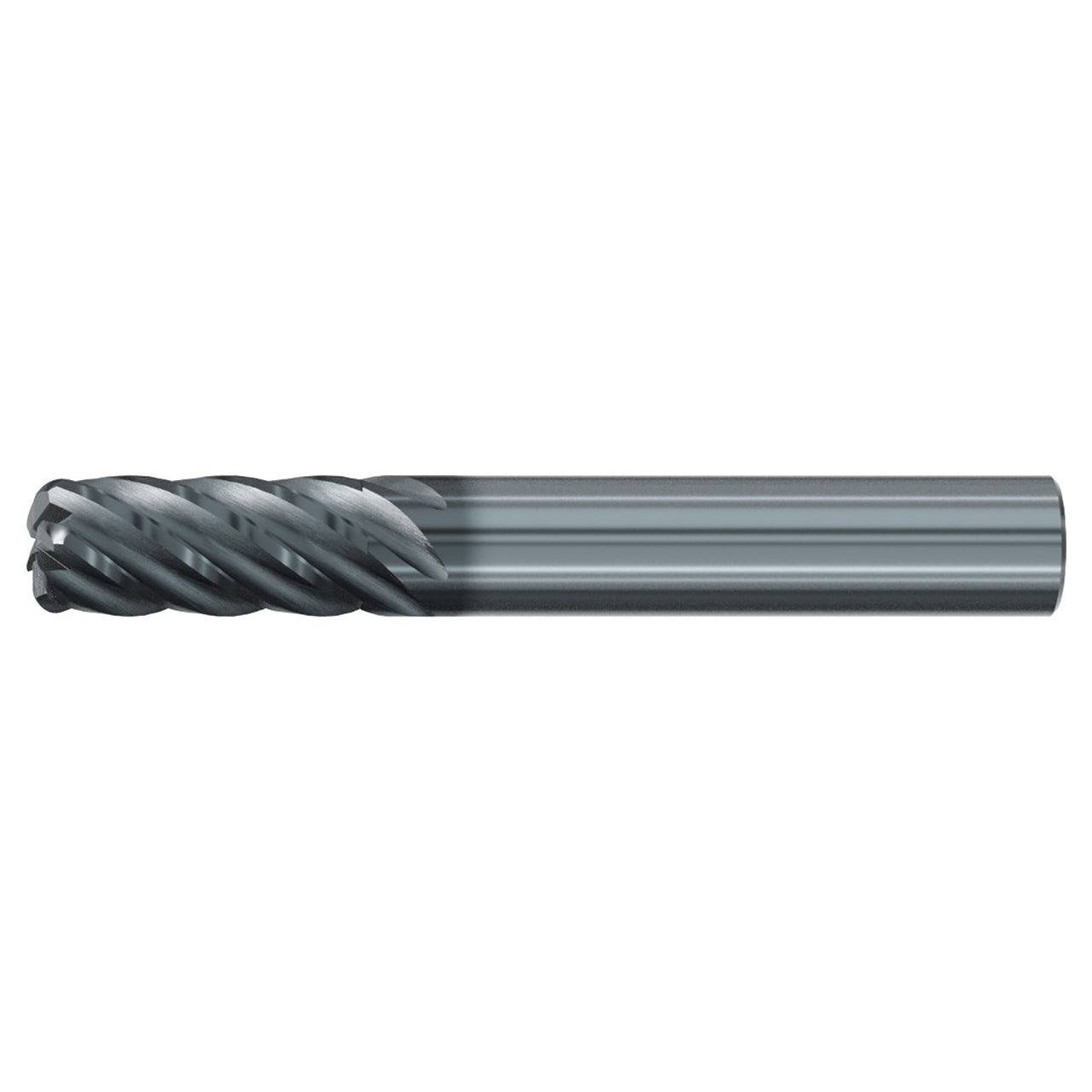

- TOP-Cut VAR carbide end mill with 6 flute design for finishing milling strategies in almost all materials
- Variable flute spacing for reduced vibration and improved surface finish
- Suitable for trochoidal milling path applications
- ALCR coating for longer tool life and can be used in high-alloyed materials
Product Specifications
| Manufacturer Part Number | 2947L.050010 |
| Cutting Diameter (Inch) | 1/2" |
| Cutting Diameter (Decimal Inch) | 0.500" |
| Corner Radius (Decimal Inch) | 0.010" |
| Overall Length (Inch) | 3" |
| Flute-Length (Inch) | 1" |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Standard Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 6 |
| Flute Helix Angle (Degree) | 35-38 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALCR |
| Tool Type | Corner Radius |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Corner Radius |
| Application | Finishing |
| Product Type | Corner Radius End Mill |
