Features:

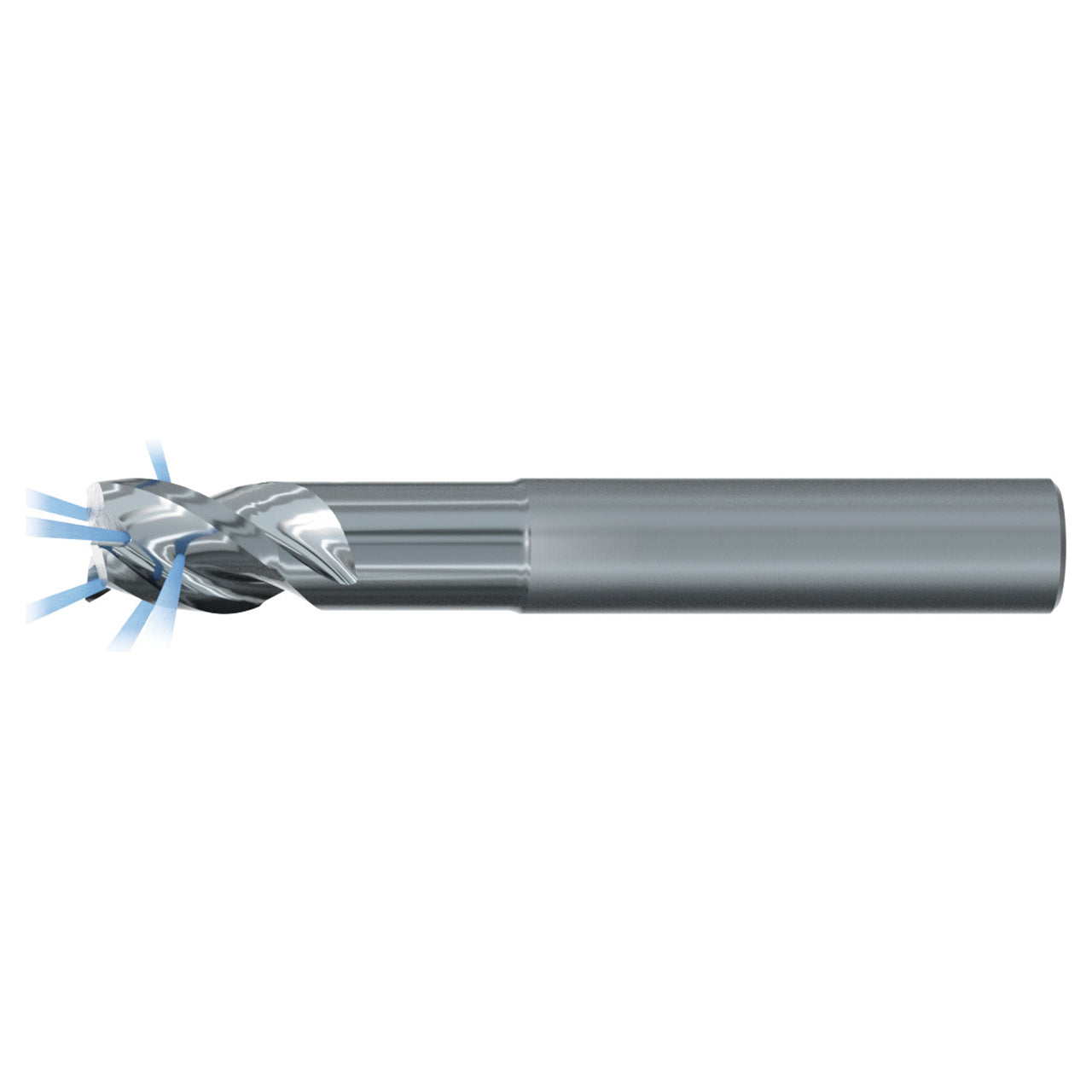

- Alu-Cut / Aerospace carbide end mill for roughing and finishing in wrought aluminum alloys
- Variable spacing reduces vibrations and allows low-vibration machining
- Unique flute geometry enables best possible surface quality
- Coolant fed both axial & radial exits
Product Specifications
| Manufacturer Part Number | 2889 Z.0250 |
| Cutting Diameter (Inch) | 1/4" |
| Cutting Diameter (Decimal Inch) | 0.250" |
| Overall Length (Inch) | 2-1/4" |
| Flute-Length (Inch) | 11/32" |
| Shank Tolerance | h5 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Regular |
| Coolant Supply Property | Internal |
| Coolant Fed | Radial & Axial |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 40 Degree |
| Cutting Edge Material | Carbide |
| Coating | Bright |
| Tool Type | Square End |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Square |
| Application | Finishing |
| Product Type | Corner Radius End Mill |
