Features:

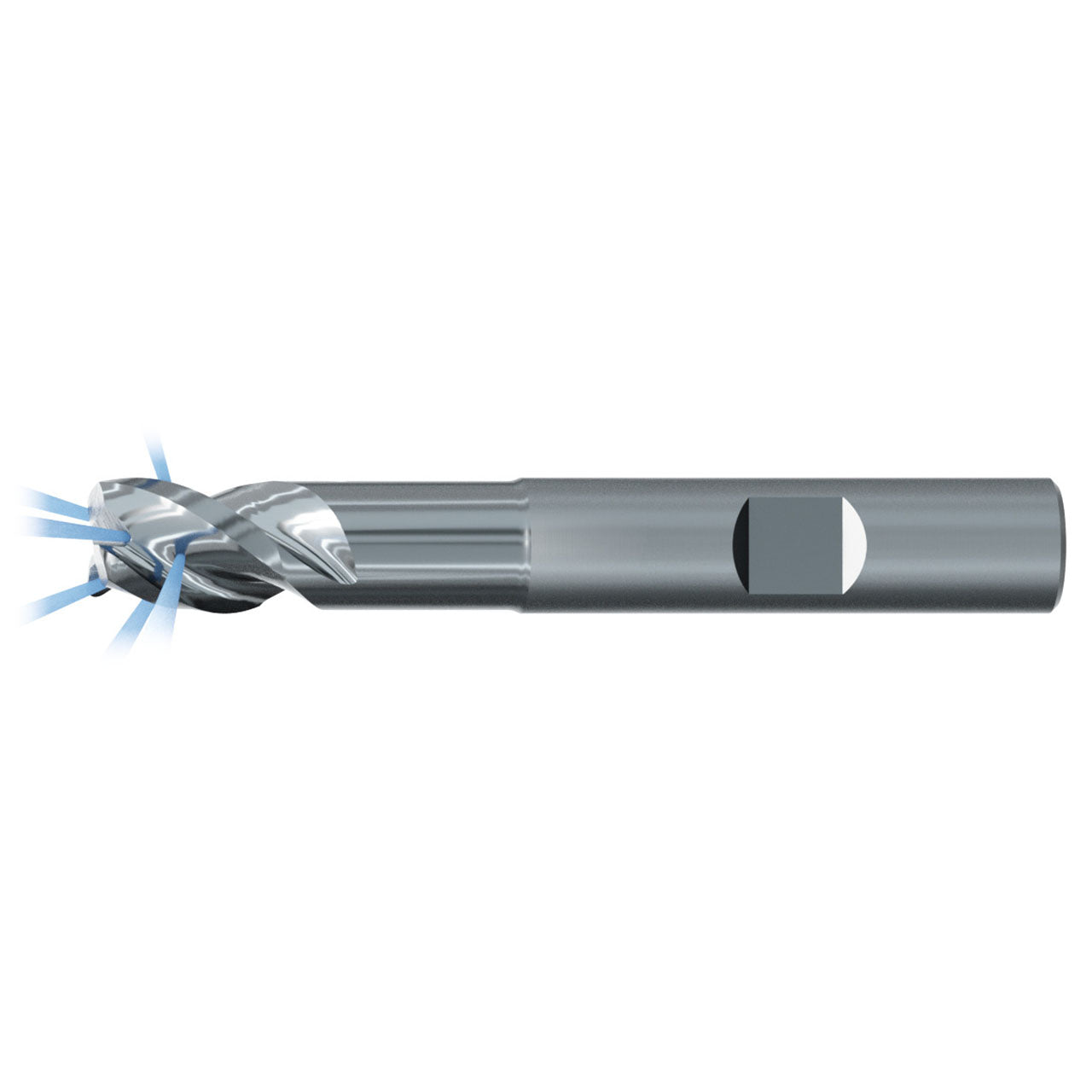

- Alu-Cut / Aerospace carbide end mill for roughing and finishing in wrought aluminum alloys
- Special geometry enables best possible surface quality
- Variable spacing reduces vibrations and allows low-vibration machining
- Coolant fed both axial & radial exits
Product Specifications
| Manufacturer Part Number | 2884 Z.016030 |
| Cutting Diameter (Decimal Inch) | 0.630" |
| Cutting Diameter (mm) | 16.00mm |
| Corner Radius (mm) | 3.00mm |
| Overall Length (mm) | 96.00mm |
| Flute Length (mm) | 16.00mm |
| Length Group | Regular |
| Number of Flutes | 4 |
| Flute Helix Angle (Degree) | 40 Degree |
| Shank Tolerance | h5 |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Corner Radius |
| Coolant Supply Property | Internal |
| Coolant Fed | Radial & Axial |
| Cutting Edge Material | Carbide |
| Coating | Bright |
| Product Type | Corner Radius End Mill |
