Features:

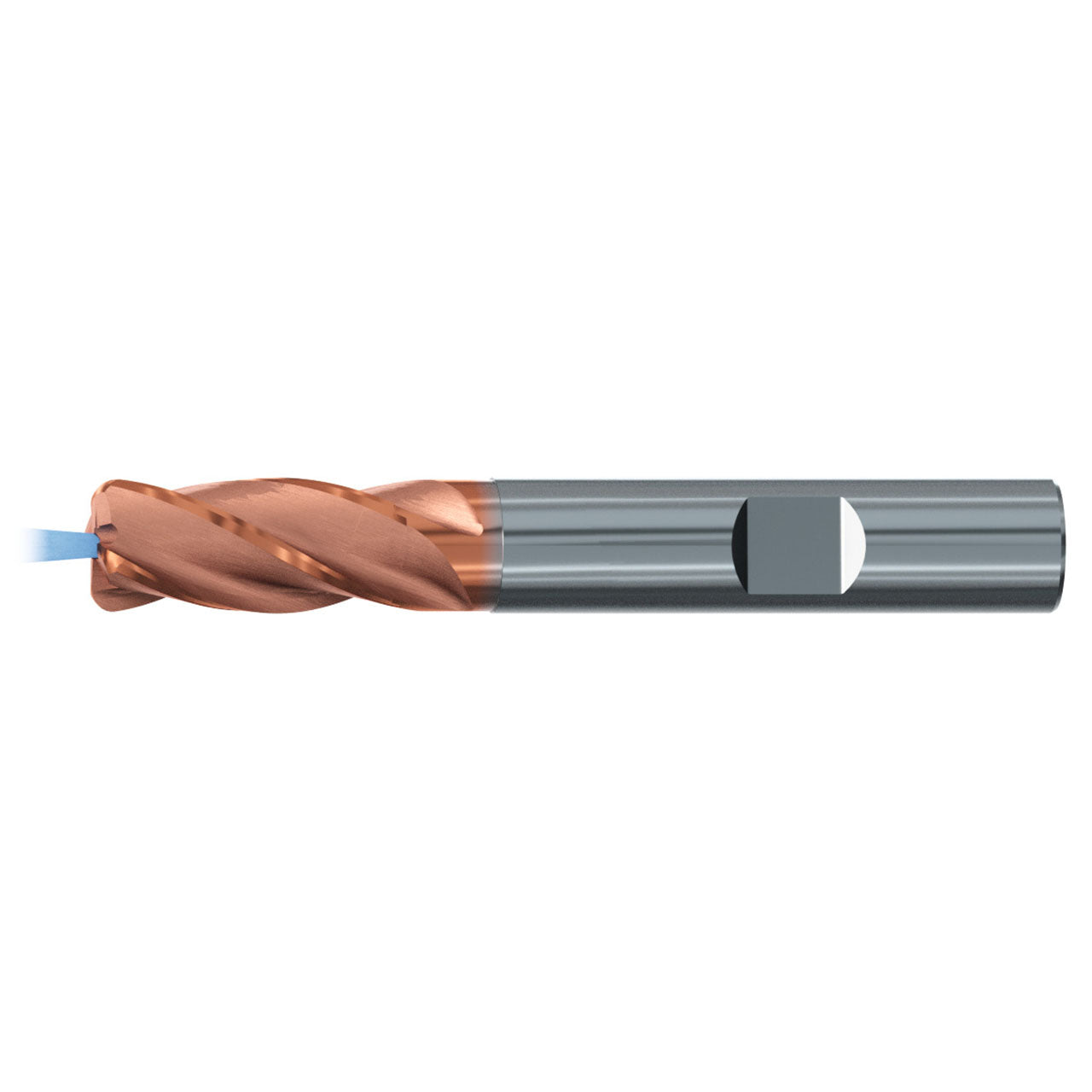

- TOP-Cut carbide end mill in long design for roughing and finishing in almost all materials
- Unique geometry enables low-vibration machining and universal use in almost all materials and milling processes
- TIALN coated for additional heat and wear resistance
- Axial coolant hole for enhanced chip evacuation
Product Specifications
| Manufacturer Part Number | 2699AZ.016040 |
| Cutting Diameter (Decimal Inch) | 0.630" |
| Cutting Diameter (mm) | 16.00mm |
| Corner Radius (mm) | 4.00mm |
| Overall Length (mm) | 92.00mm |
| Flute Length (mm) | 32.00mm |
| Length Group | Standard Length |
| Number of Flutes | 4 |
| Flute Helix Angle (Degree) | 35-38 Degree |
| Shank Tolerance | h6 |
| Shank Standard | DIN 6535 |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Corner Radius |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Cutting Edge Material | Carbide |
| Coating | TIALN |
| Product Type | Corner Radius End Mill |
