Features:

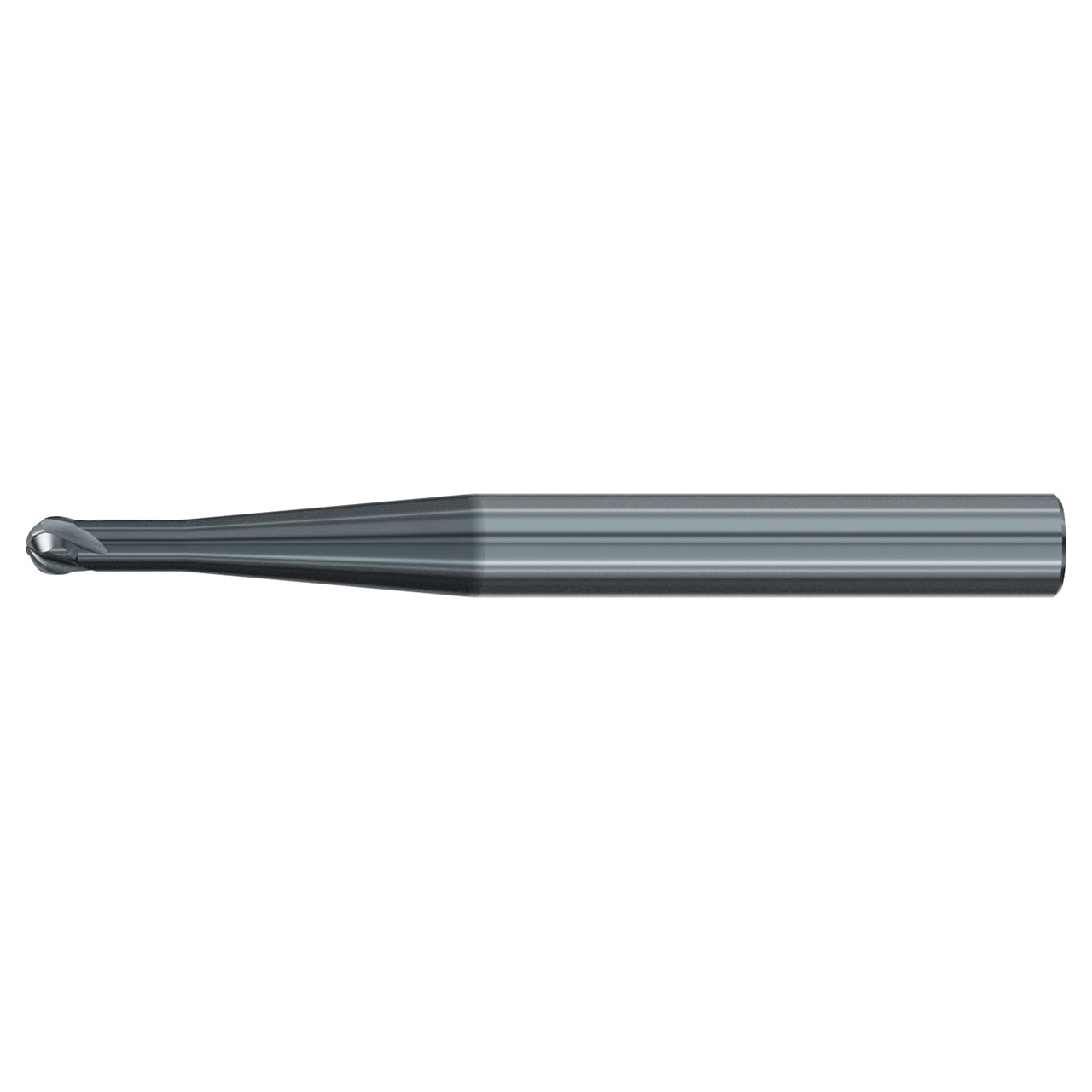

- TOP-Cut "Lollipop" carbide ball nose end mill in long and extra long design for roughing and finishing operations in many materials
- Ball nose with up to 240 Degree cutting range enables undercut machining
- ALCR coating for longer tool life, very well suited for high-alloyed materials
Product Specifications
| Manufacturer Part Number | 2564L.03008B |
| Cutting Diameter (Decimal Inch) | 0.118" |
| Cutting Diameter (mm) | 3.00mm |
| Corner Radius (mm) | 1.50mm |
| Overall Length (mm) | 80.00mm |
| Flute Length (mm) | 2.40mm |
| Shank Tolerance | h5 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Extra Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 30 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALCR |
| Tool Type | Lollipop Style |
| End Mill - End Style | Ballnose End Mills |
| End Shape | Ball |
| Application | Finishing |
| Product Type | Ball End Mill |
