Features:

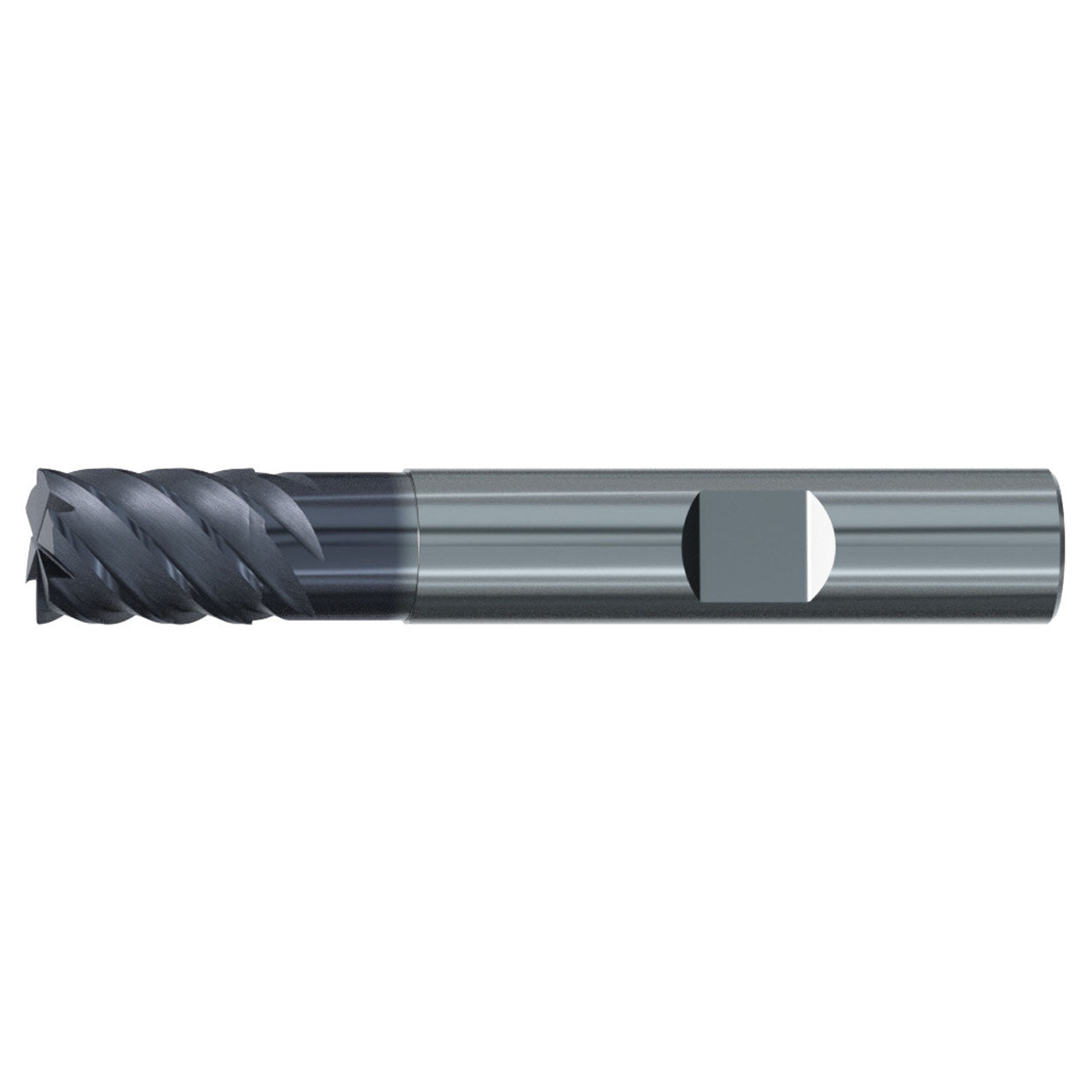

- Hard-Cut carbide end mill with lateral driving flat for finishing in high-strength materials up to 66 HRC
- Suitable for low-vibration machining due to stable design with increased core diameter
- High numbers of teeth enable high feed speeds
- Hard milling for materials up to 66 HRC
Product Specifications
| Manufacturer Part Number | 1925A.005 |
| Cutting Diameter (Decimal Inch) | 0.197" |
| Cutting Diameter (mm) | 5.00mm |
| Overall Length (mm) | 54.00mm |
| Flute Length (mm) | 9.00mm |
| Length Group | Stub Length |
| Number of Flutes | 6 |
| Flute Helix Angle (Degree) | 50 Degree |
| Shank Tolerance | h5 |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Square End Mill |
| Coolant Supply Property | External |
| Cutting Edge Material | Carbide |
| Coating | TIALN |
| Product Type | Stub Length Square End Mill |
