Features:

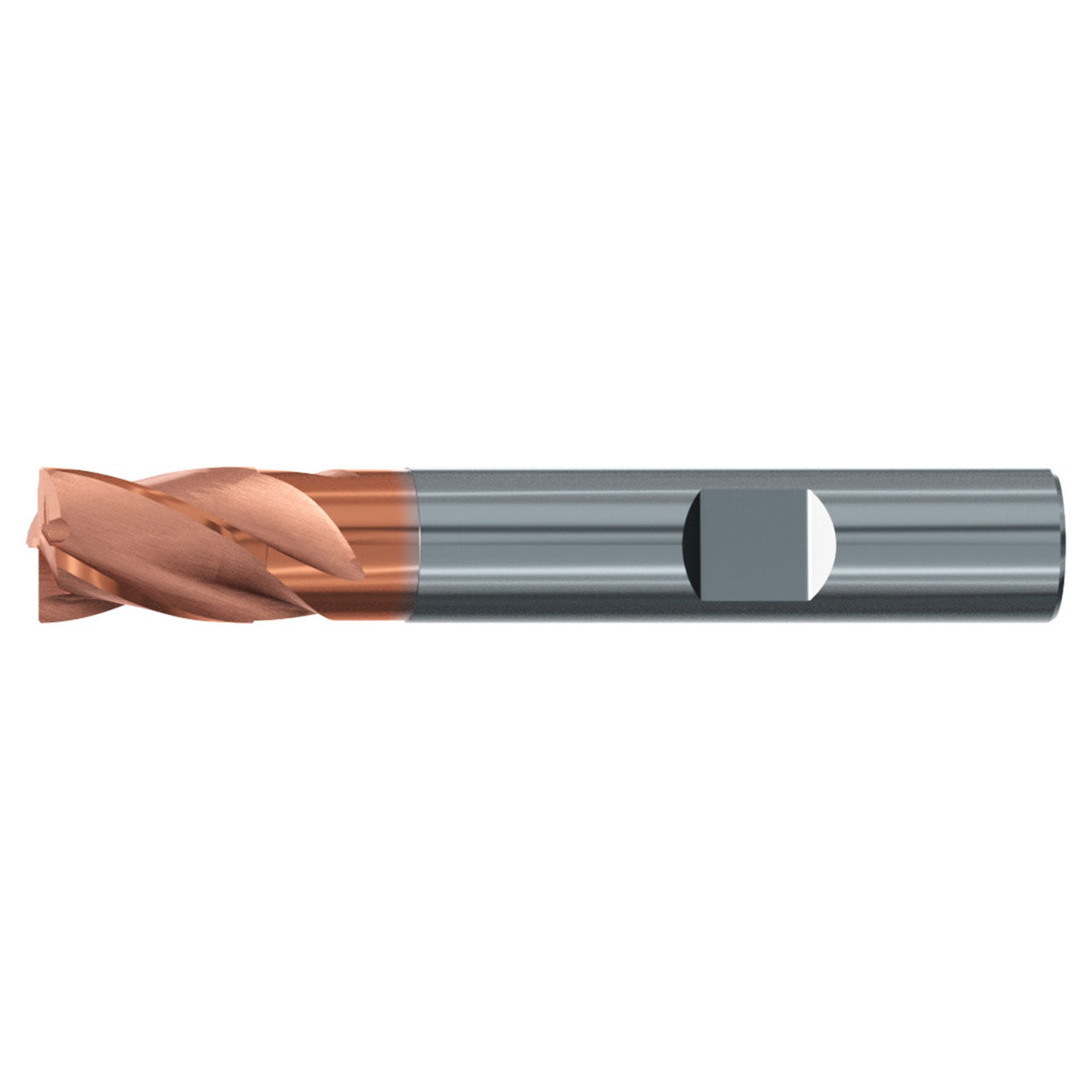

- TOP-Cut carbide end mill for roughing and finishing in almost all materials
- Unique geometry enables low-vibration machining and universal use in almost all materials and milling processes
- TIALN coating for best possible wear protection and long tool life
- Wear resistant sub-micro grain carbide
Product Specifications
| Manufacturer Part Number | 1917A.007 |
| Cutting Diameter (Decimal Inch) | 0.276" |
| Cutting Diameter (mm) | 7.00mm |
| Overall Length (mm) | 58.00mm |
| Flute Length (mm) | 12.00mm |
| Length Group | Stub Length |
| Number of Flutes | 4 |
| Flute Helix Angle (Degree) | 35-38 Degree |
| Shank Tolerance | h6 |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Square End Mill |
| Coolant Supply Property | External |
| Cutting Edge Material | Carbide |
| Coating | TIALN |
| Product Type | Stub Length Square End Mill |
