Features:

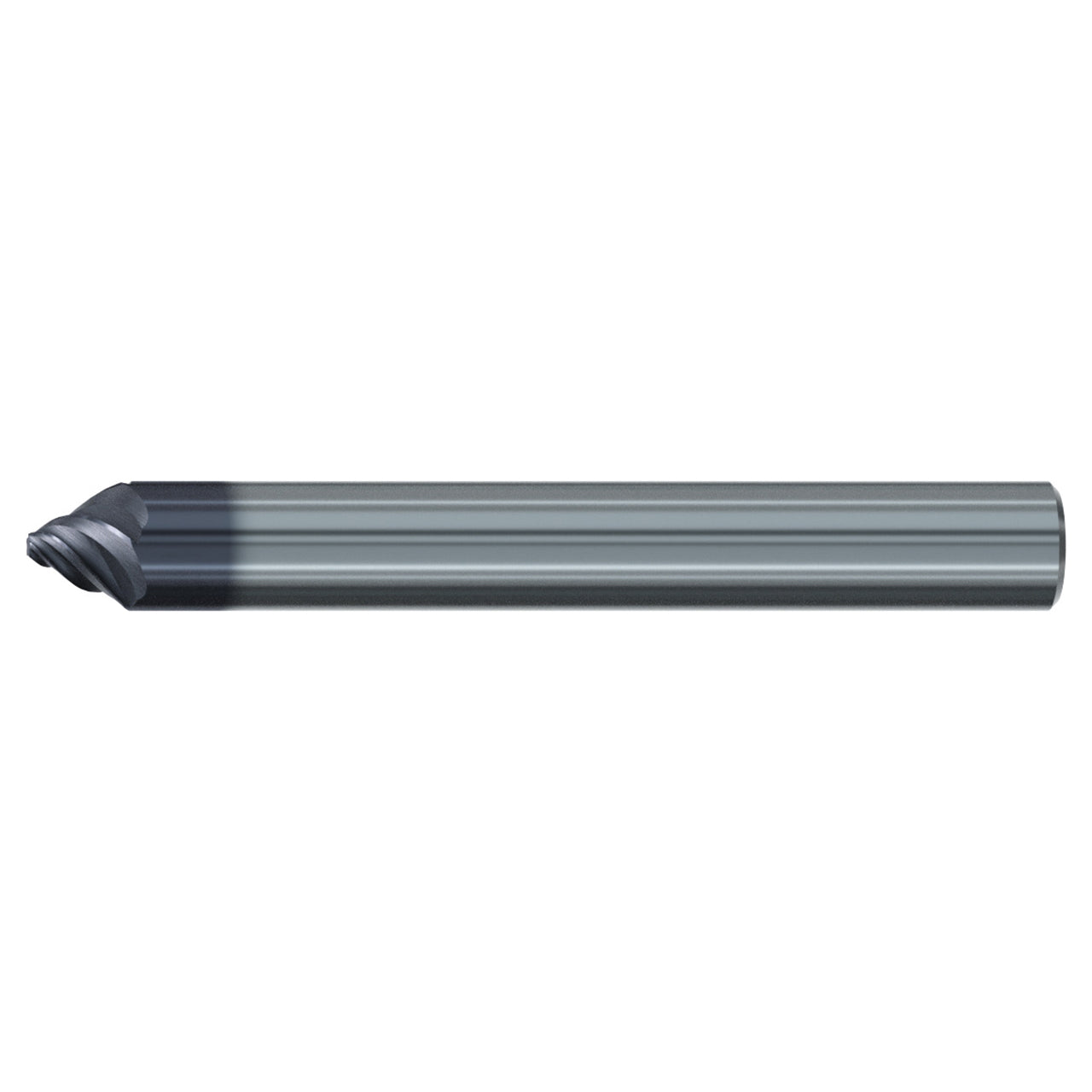

- Carbide chamfer mill with specialized spiral cutting edge for smoother cutting action
- Spiral point design improves surface finish
- Reduced torque requirements
- TIALN coated for heat and wear resistance
Product Specifications
| Manufacturer Part Number | 1709A.120125 |
| Cutting Diameter (Inch) | 1/8" |
| Cutting Diameter (Decimal Inch) | 0.125" |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | HA |
| Flute Direction | Right Hand |
| Group Length | Standard |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 5 |
| Point Angle (Degree) | 120 Degree |
| Cutting Edge Material | Carbide |
| Coating | TIALN |
| Tool Type | Chamfer |
| End Mill - End Style | Chamfer Tool |
| End Shape | Spiral Chamfer |
| Application | Finishing |
| Product Type | Chamfer Mill |
