Features:

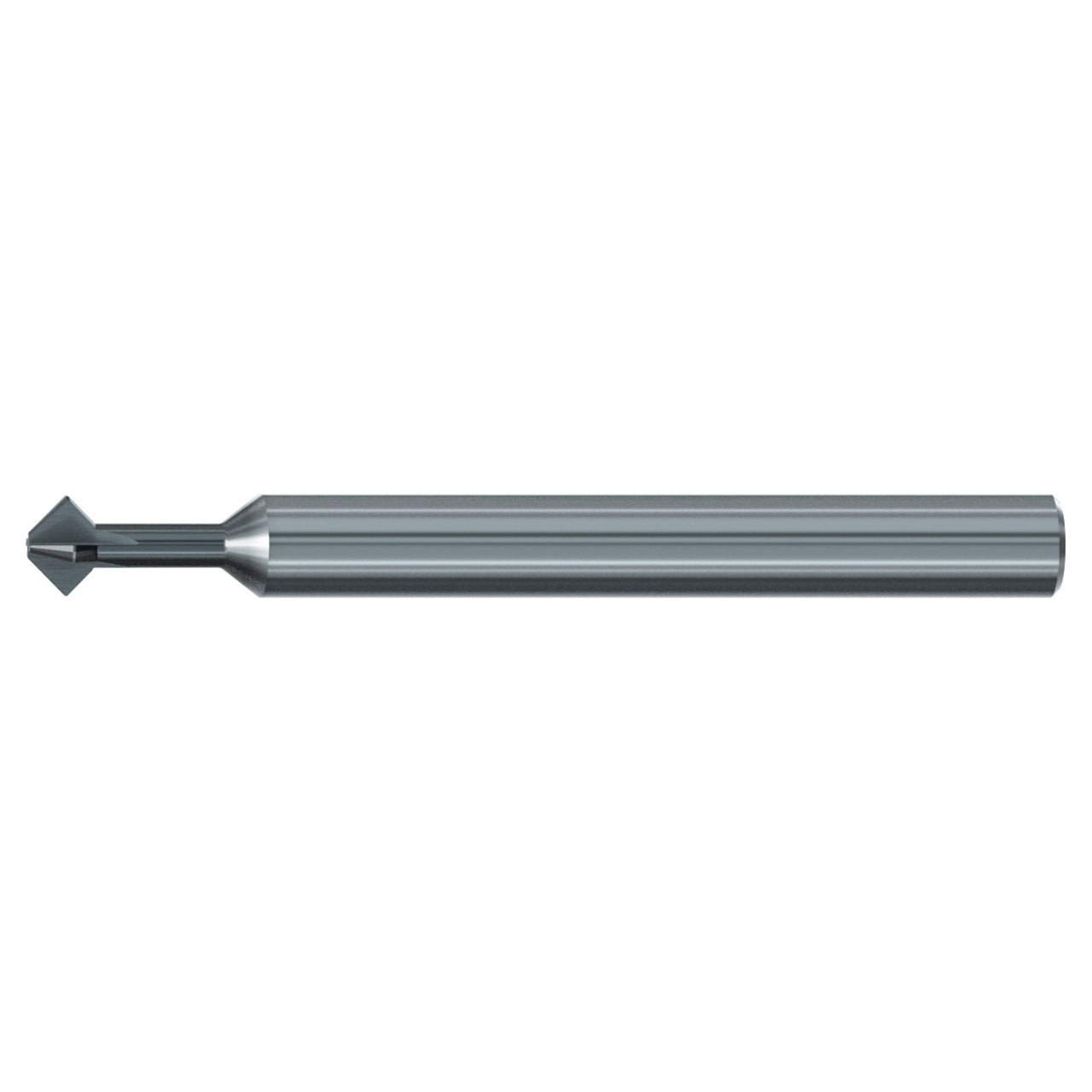

- Solid Carbide Front/Back Deburring End Mill 90 Degree
- For materials with tensile strength up to 1,400 N/mm
- Carbide forward-reverse deburring end mill for chamfering edges, slots and drilled holes on the front and back
- ALCR coating for longer tool life and very good suitability for high-alloyed materials
Product Specifications
| Manufacturer Part Number | 1700L.07715A |
| Cutting Diameter (Decimal Inch) | 0.303" |
| Cutting Diameter (mm) | 7.70mm |
| Neck Length (mm) | 15.00mm |
| Overall Length (mm) | 80.00mm |
| Flute Length (mm) | 5.00mm |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Standard Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 4 |
| Point Angle (Degree) | 90 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALCR |
| Tool Type | Chamfer |
| End Mill - End Style | Engraving & Chamfer Tools |
| End Shape | Chamfer |
| Application | Finishing |
| Product Type | Back Chamfer |
