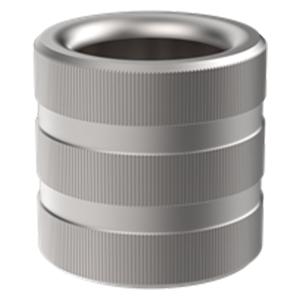

Carr Lane SG-48-8-.5000 | Quick-Ship Serrata-Groove Bushing

Carr Lane SG-48-8-.5000 | Quick-Ship Serrata-Groove Bushing

SKU: 50076245

$11.59 USD
$11.59 USD $11.59 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 14 Grams

Ver todos los detalles

Product Information

This bushing can be cast in place or potted, just like a Diamond-Groove Bushing, or can be pressed into an installation hole. The straight knurl provides excellent resistance to rotation, but provides less resistance to axial forces than a diamond knurl. Since the bushing's OD is not ground, the ID must be accurately located during casting or potting to ensure accuracy in the finished tool. Quick-Ship Drill Bushings are popular bushing sizes that we do our best to keep in stock and ready for same-day shipment 100% of the time. These bushings include most common ID drill sizes. Complete part numbers for all quick-ship P bushings are listed in the tables below.

Application Information_1

This bushing can be cast in place or potted, just like a Diamond-Groove Bushing, or can be pressed into an installation hole. The straight knurl provides excellent resistance to rotation, but provides less resistance to axial forces than a diamond knurl.

Standard ID Tolerance:

  • From #80 to 1/4": +0.0001 / +0.0004
  • Over 1/4 to 3/4": +0.0001 / +0.0005
  • Over 3/4 to 1-1/2": +0.0002 / +0.0006
  • Over 1-1/2 to 2-3/4": +0.0003 / +0.0007

Reamer ID Tolerance (Special):

  • From #80 to 1/4": +0.0005 / +0.0008
  • Over 1/4 to 3/4": +0.0006 / +0.0010
  • Over 3/4 to 1-1/2": +0.0008 / +0.0012

Reamer bushings have a different ID tolerance range than drill bushings. To special-order bushings with the reamer ID tolerance shown here, add "-REAMER" to the part number: SG-26-16-.1875-REAMER (Special).

Standard OD Tolerance:

  • From 13/64": +0.020 / +0.010
  • Over 1/4" to 7/8": +0.025 / +0.010
  • Over 7/8" to 1": +0.035 / +0.010

Material Specifications
Material Head Tread Stud DFARS RoHS
1144 Stressproof Steel heat-treated to achieve Rc 62-64 ID hardness - ? ?

Product Specifications
Manufacturer Part Number SG-48-8-.5000
Product Type Quick-Ship Serrata-Groove Bushing
