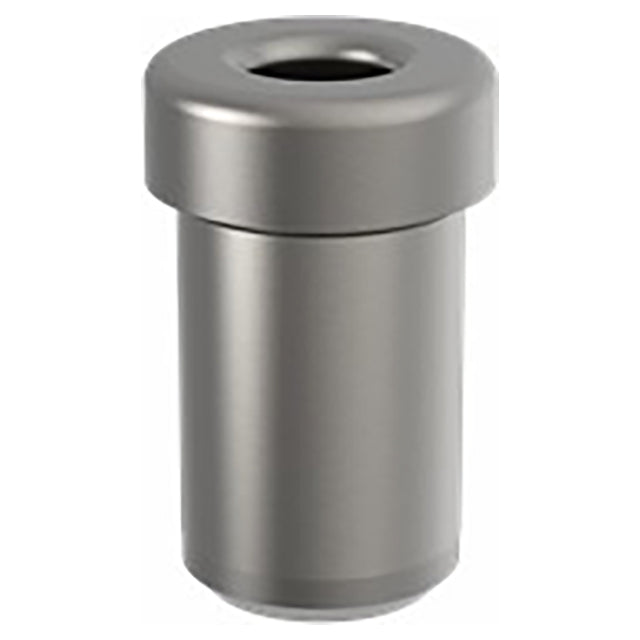

Quick-Ship Head Press-Fit Bushings-Metric
Metric version of our popular H bushing. HM bushings are permanently pressed into the jig plate. They are generally used for single-operation drilling or reaming, when you do not expect to replace bushings during the tooling's lifetime. The head can be left exposed, or recessed by counterboring the installation hole.
Application Information
HM bushings are permanently pressed into the jig plate. The head can be left exposed, or recessed by counterboring the installation hole.
ID Tolerance
Standard ID Tolerance (G6):
From 0.35 to 3mm +0.002/+0.008mm
Over 3 to 6mm +0.004/+0.012mm
Over 6 to 10mm +0.005/+0.014mm
Over 10 to 18mm +0.006/+0.017mm
Over 18 to 30mm +0.007/+0.020mm
Over 30 to 50mm +0.009/+0.025mm
OD Tolerance
Standard OD Tolerance (s6):
4 to 6mm +0.027/+0.019
7 to 10mm +0.032/+0.023
12 to 18mm +0.039/+0.028
22 to 30mm +0.048/+0.035
35 to 48mm +0.059/+0.043
55 to 62mm +0.072/+0.053
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 or 52100 steel | Heat Treated to achieve Rc 62-64 ID Hardness | - | - | ✔ |
Parts Specification
| ID (mm) | OD (mm) | Length (mm) | F Diameter (mm) | G (mm) |
| 42.00mmmm | 55mmmm | 30mmmm | 59mmmm | 5mmmm |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
