Product Information

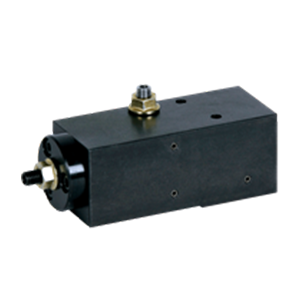

3600 psi max This valve is especially suitable for clampingfixtures where sequencing must be accomplished within a specified time. This sequence valve provides an adjustable, time-dependent switching delay that is independent of hydraulic pressure. Sequence time is adjustable with a range that depends on the model selected and on system operating pressure, as shown in the table below.Parallel or series connection of several valves is possible. The compact design facilitates installation directly on the clamping fixture using manifold mounting.
Parts Specification
| Part Number | TIME-DELAY ADJUSTMENT RANGE AT 3675 psi | TIME-DELAY ADJUSTMENT RANGE AT 2200 psi | TIME-DELAY ADJUSTMENT RANGE AT 1000 psi | MINIMUM OPERATING PRESSURE (psi) | WEIGHT (lbs) |
| CLR-2954-630 | .5 to 3.5 seconds | 1.2 to 6 seconds | 3 to 13.5 seconds | 440 | 3.3 |
