Product Information

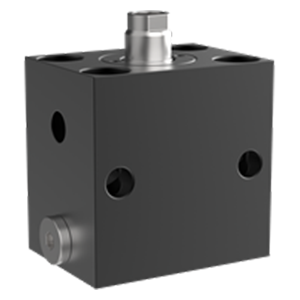

7250 psi max Single Acting Pull-clamp version of our popular Block Cylinders. Plunger is extended with pressure off, then retracts when pressure is applied. Compact design with many applications. Easy to mount on flat surfaces, horizontally or vertically. Excellent for pressing and assembly operations, with very high forces available. Available in five inch sizes and eight metric sizes. Push force at 7250 psi: 1350 Lbs 3210 Lbs 5440 Lbs 8520 Lbs 12900 Lbs 20700 Lbs 34100 Lbs 52800 Lbs .
Clamping Action

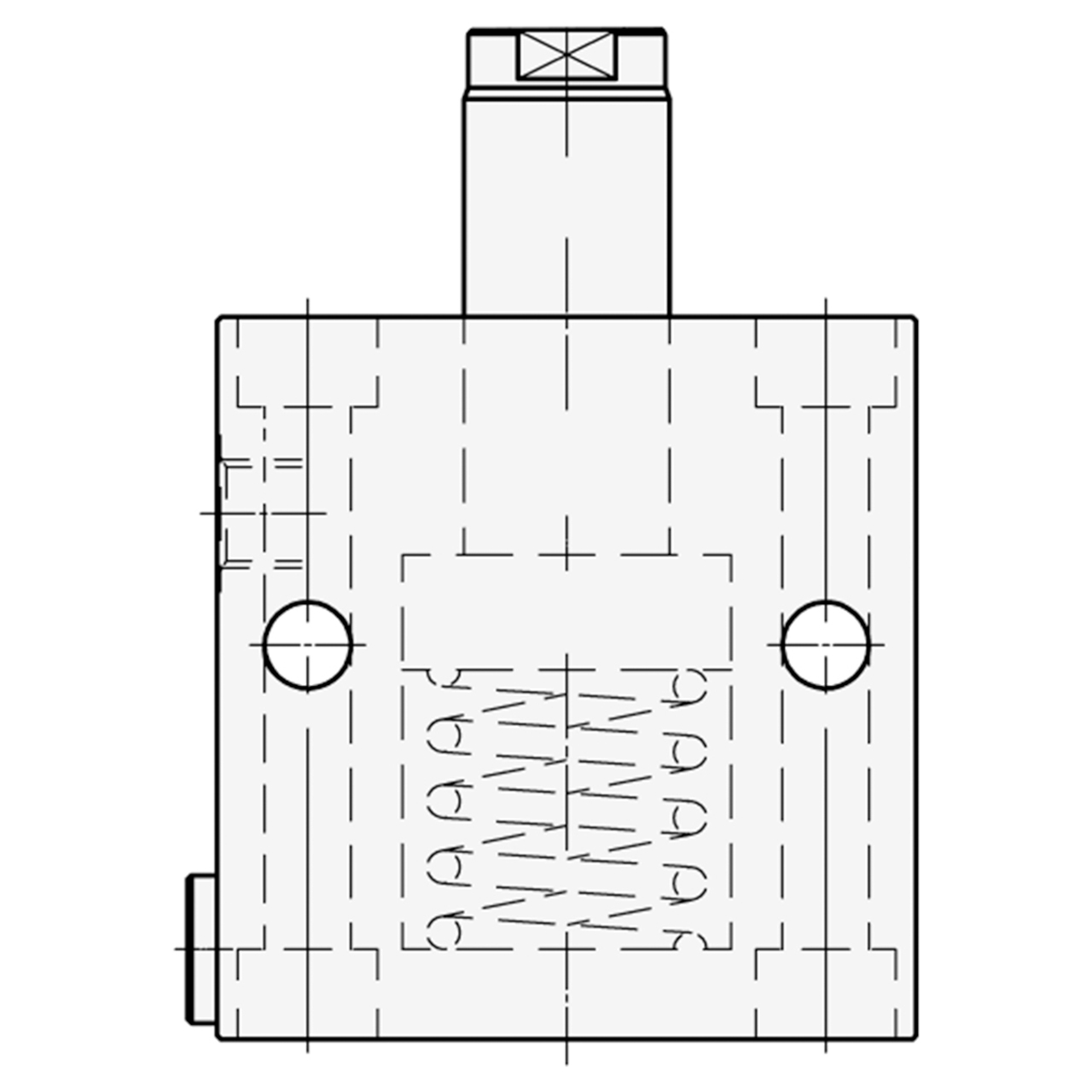

Applying fluid pressure retracts the plunger. Spring return to extended position.
Optional Viton Seals
For high-temperature applications (212 Degree to 300 Degree F), we offer Viton seals in all sizes. Viton seals have a slightly shorter service life.
| Item | Material | Head Tread | Stud |
| Plunger | Steel | Case Hardened | - |
| Body | Steel | - | Black Oxide |
| Manufacturer Part Number | CLR-1574-705-BC |
| Maximum Clamping Force (lbs) | 5440 lbs |
| Maximum Clamping Force (kN) | 24.20kN |
| Clamping Stroke (mm) | 10.00mm |
| Width (mm) | 75.00mm |
| Depth (mm) | 55.00mm |
| Height (mm) | 110.00mm |
| Product Type | Block Pull Cylinder |
