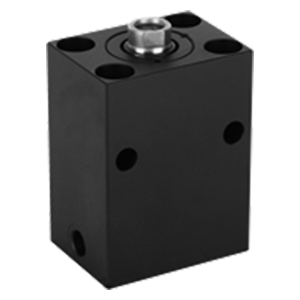

Product Information
7250 psi max Single Acting Compact design with many applications. Easy to mount on flat surfaces, horizontally or vertically. Excellent for punching, pressing, and assembly operations, with very high forces available. Available in six inch sizes and eight metric sizes, with a choice of stroke length. Push force at 7250 psi: 2250 Lbs 5500 Lbs 9000 Lbs 14100 Lbs 22100 Lbs 35100 Lbs 56600 Lbs 88100 Lbs .

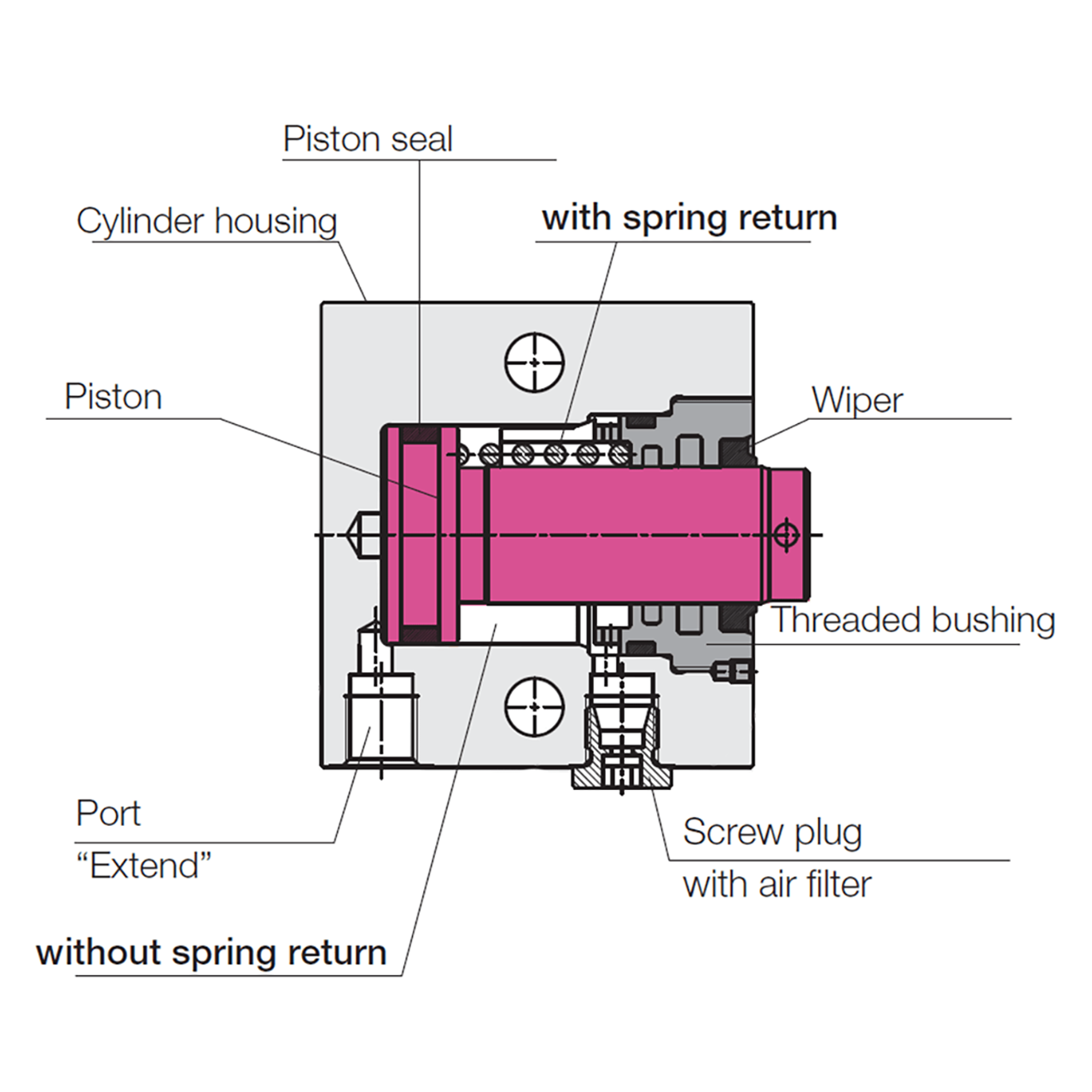

Clamping Action
Applying fluid pressure to the A port advances the plunger. Spring return.
Optional Viton Seals
For high-temperature applications (212 Degree to 300 Degree F), we offer Viton seals in all sizes. Viton seals have a slightly shorter service life.
| Item | Material | Head Tread | Stud |
| Plunger | Steel | Case Hardened | - |
| Body | Steel | - | Black Oxide |
| Manufacturer Part Number | CLR-1517-035 |
| Thread Size | M27 x 40 |
| Width (mm) | 125.00mm |
| Depth (mm) | 95.00mm |
| Height (mm) | 149.00mm |
| Product Type | Long Stroke Block Cylinder |
