Product Information

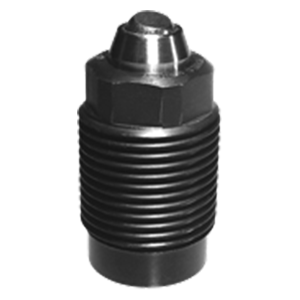

7250 psi max Single Acting Versatile push clamps that provide considerable force in a small size. These small clamps can be placed very close together, especially when manifold mounted. Clamps can be screwed all the way down to their hex flats, or installed at partial depth. Long plunger guide ensures excellent reliability and durability. Available in five body diameters, with inch or metric threads, with a choice of swivel plunger (shown here), radius plunger, or tapped plunger. Clamping force at 7250 psi: 1280 lbs 2270 lbs 3530 lbs 5530 lbs 9000 lbs.
| Item | Material | Head Tread | Stud |
| Plunger | Steel | - | Case Hardened |
| Body | Steel | - | Black Oxide |
| Sealing Washer | Delrin | - | - |
| Manufacturer Part Number | CLR-1460-010 |
| Product Type | Threaded-Body Cylinder |
