Product Information

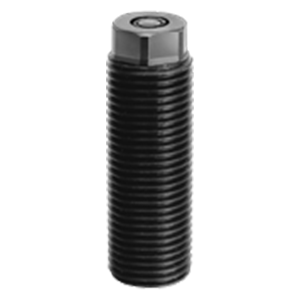

7250 psi max Single Acting Tiny push clamps with a solid plunger. Threaded-body clamps provide considerable force in a small size. The version shown here is designed for direct connection to tubing with standard compression fittings. Available in one body diameter, with M16x1.5 threads and 10mm stroke. Optional extended piston rod provides extra reach. Clamping force at 7250 psi: 560 Lbs .
Clamping Action

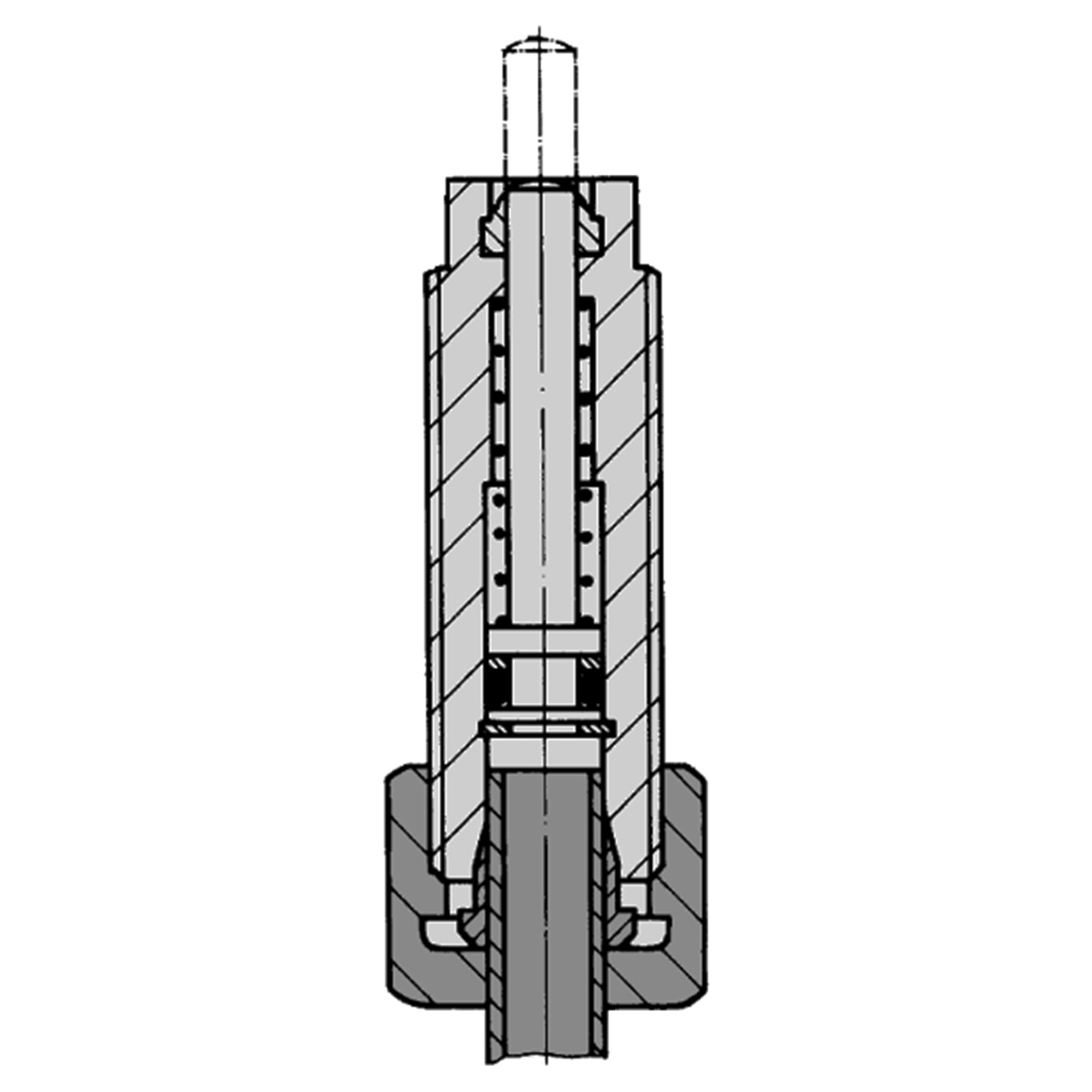

Applying fluid pressure advances the plunger. Spring return.
Material Specifications
| Item | Material | Head Tread | Stud |
| Plunger | Steel | - | Case Hardened |
| Body | Steel | - | Black Oxide |
Product Specifications
| Manufacturer Part Number | CLR-1459-001 |
| Thead Size | M16x1.50 |
| Maximum Clamping Force (lbs) | 560 lbs |
| Maximum Clamping Force (kN) | 2.50kN |
| Clamping Stroke (mm) | 10.00mm |
| Overall Height (mm) | 48.00mm |
| Product Type | Mini Threaded-Body Cylinder |
