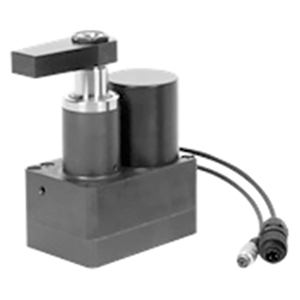

Carr Lane CLR-0341-231 | Electric Swing Clamp

Product Information

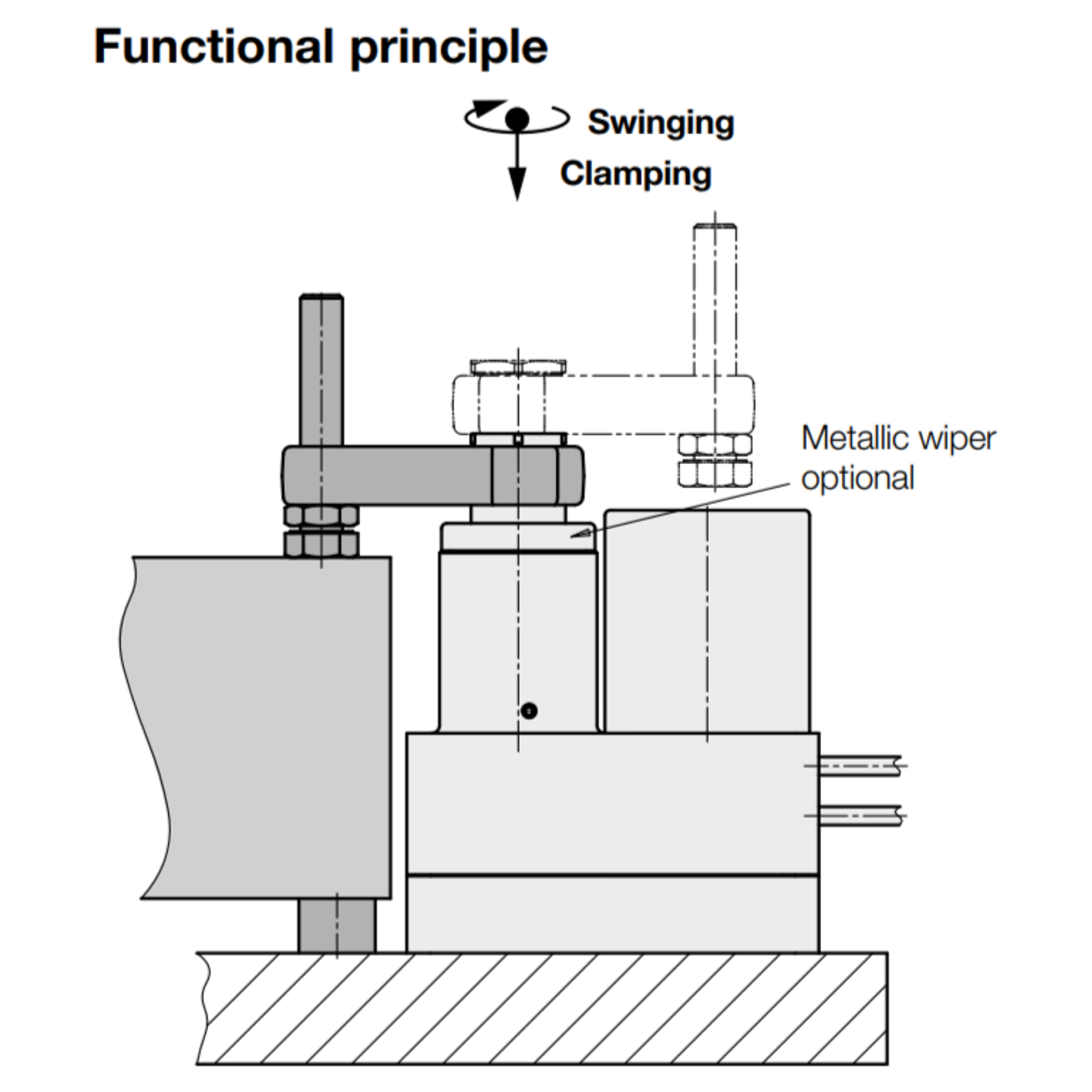

The electric swing clamp is driven by a wear-resistant brushless DC motor. The motor speed is transformed by means of a gear and a threaded spindle into the swing and stroke movement of the piston rod. During the 180 Degree swing of the clamping, an axial stroke of only 3 mm is required. If the clamping arm collides during the swing motion with a workpiece, the mechanism is protected against overload. The direct current motor is automatically and immediately switched off. When unclamping, the clamping arm always swings back to the off-position. BENEFITS • High clamping force • Adjustable clamping force • Clamping force monitoring • FAILSAFE - High operating safety by self-locking spindle drive • Mechanical re-clamping by Belleville springs • Swing angle up to 180 Degree available • Overload protection device in the case of collisions with the clamping arm • Electric position monitoring and extensive self-monitoring with diagnostic options • Clamping stroke control possible • Low voltage 24 VDC • Maintenance free (500,000 cycles). • Code class IP 67 .

Application Information_1

Electric swing clamps are used for clamping or holding of workpieces. - when the clamping and holding points shall be free for loading and unloading of the fixture - when an extended functionality is required for automated systems - when clamping elements must be controlled individually - where the clamping force must be maintained also after the separation from the energy supply Thus, electric swing clamps are particularly suited for: • Packaging industry • Test systems • Special machines • Assembly equipment and robotics • Automatic manufacturing systems • Clamping fixtures with workpiece loading via handling systems
