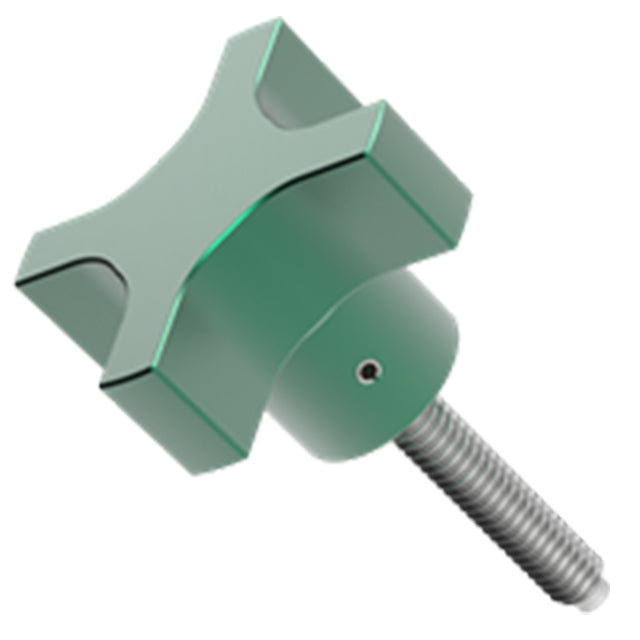

Extruded Hand Knob Assembly
Extruded, easy-to-grip hand knob with an integral steel clamping screw. Four-prong design provides a firm grip for applications requiring quick tightening and high torque.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Knob | Extruded Aluminum | Yes | Green Anodize | Yes | Yes |
| Screw | 1215 Steel | Yes | Zinc Plated Clear Chromate | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C Diameter (mm) | E Diameter (mm) | H (mm) | K Diameter (mm) |
| M16x2.0 | 2mm | 45mm | 64mm | 11.9mm | 38mm | 25mm |
