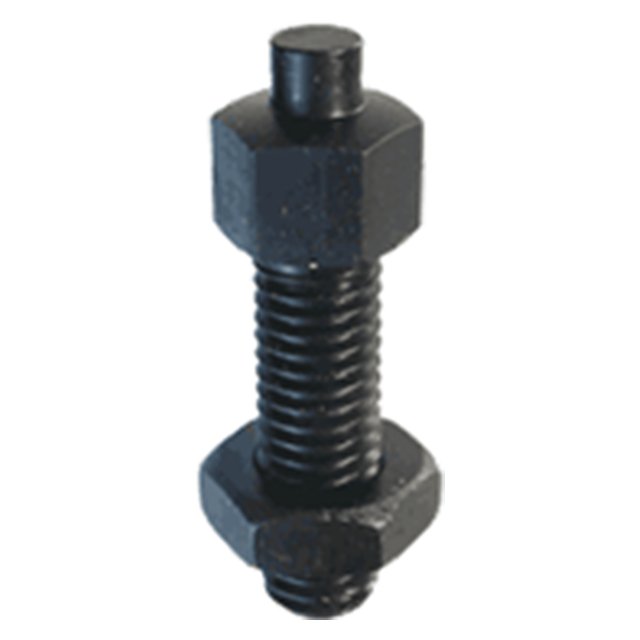

Clamp Rests
Rear support for Slotted-Heel Clamp Straps. The shoulder, which supports the Clamp Strap, has a large hex for easy adjustment and tightening. Jam Nut is included. Made in USA.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Rest Body | 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| Jam Nut | Mild Steel | Yes | Black Oxide | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | C Diameter (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
| M20 | 2.5mm | 12mm | 7mm | 15mm | 30mm | 93mm |
