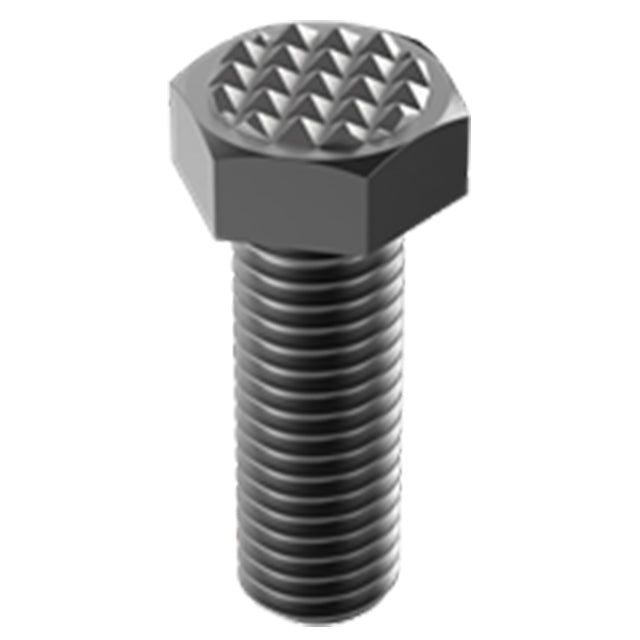

Gripper Contact Bolts
Fully threaded contact bolt with a carbide-tipped gripper head. Can be used as an adjustable support, or as a contact bolt in a clamp. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Steel | Carburized-Hardened | Black Oxide,with brazed carbide gripper | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C Diameter (mm) | D (mm) | E (mm) | Serrations | Serration Dimensions (mm) |
| M8 | 1.25mm | 35mm | 9.5mm | 6.4mm | 13mm | FINE | 3.2x90°mm |
