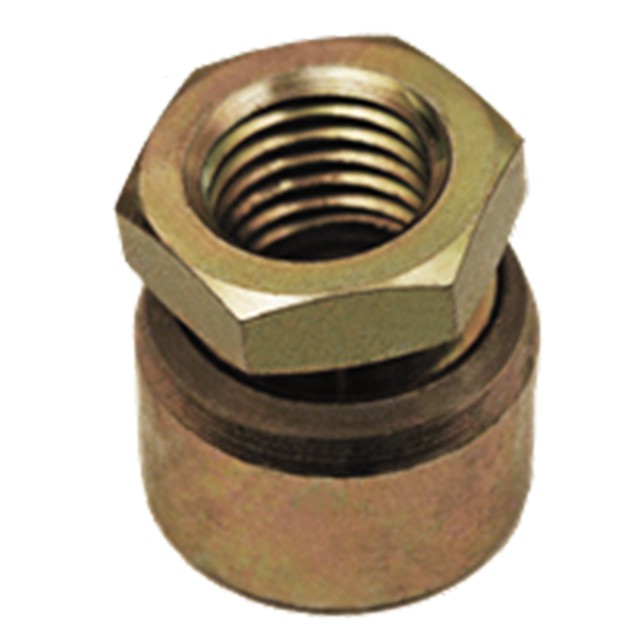

Swivel Pad Feet
Heavy-duty swivel foot pivots to contact sloped surfaces evenly. Large swivel ball provides high load capacity with a 20° total swivel angle. Made in USA.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | - | carburized-hardened zinc plated yellow chromate | Yes | Yes |
| Pad | 1215 Steel | - | zinc plated yellow chromate | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D Diameter (mm) | E (mm) |
| M8 | 1.25mm | 15mm | 19mm | 17.5mm | 9.5mm |
