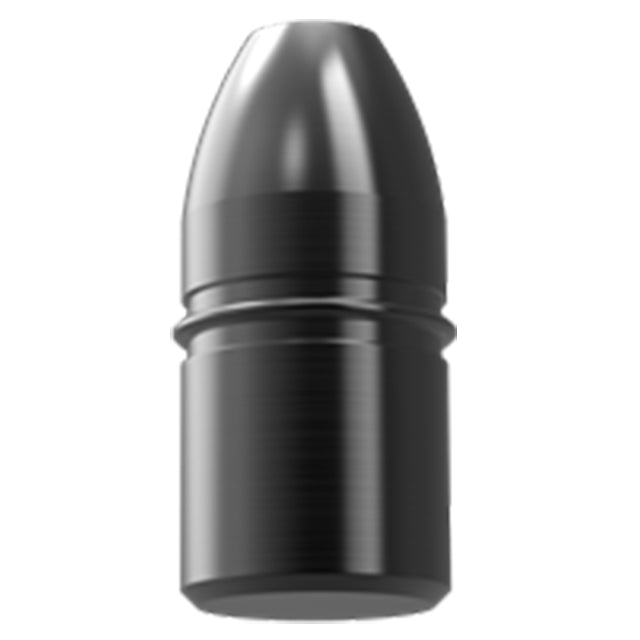

Bullet-Nose Dowels
Precision locating pin often used with a mating bushing to align two pieces of a fixture. The pin's head and shank diameters are concentric to within .0005" TIR. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 Steel | Heat Treated Rc 50-55 | Black Oxide | Yes | Yes |
Parts Specification
| A Head Diameter Nominal (mm) | A Head Diameter Actual (mm) | B Shank Diameter Nominal (mm) | B Shank Diameter Actual (mm) | C Diameter (mm) | D (mm) | E (mm) | F (mm) | G Diameter (mm) |
| 6mm | 5.997mm | 6mm | 6.025mm | 7mm | 12mm | 3mm | 22mm | 3mm |
