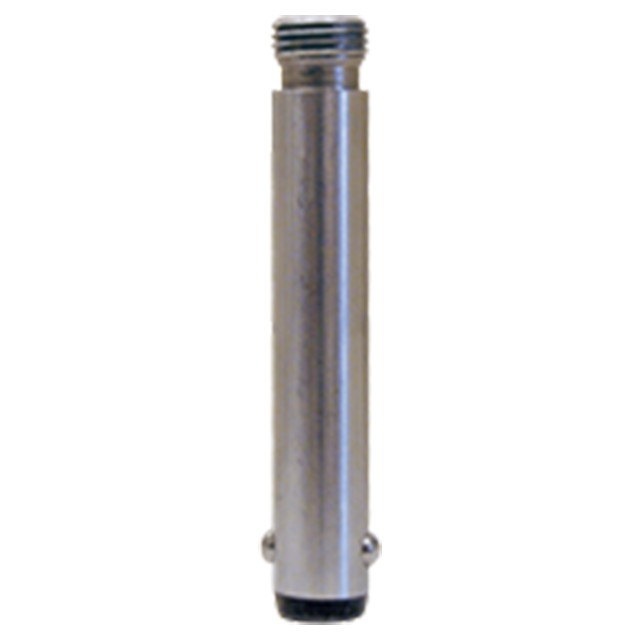

Threaded Detent Pins
have one end threaded for a knob handle. These quick-release alignment pins have a solid shank and spring-loaded locking balls. Locking balls hold the pin in place by spring force (not positive locking like a Ball Lock Pin). Simply push the pin to insert, and pull to remove. Made in USA. Knobs can be permanently secured with thread-locking adhesive if desired (an adhesive such as Loctite 263 is suitable for most applications).
Application Information
The pin's threaded end accepts virtually any type of knob handle.
Material
Shank > 300-series stainless. Spring > 17-7PH/302 stainless. Balls > 440C stainless. DFARS and RoHS compliant.
Parts Specification
| A Diameter Nominal (mm) | A Diameter Actual (mm) | Grip Length (mm) | B (mm) | C (mm) | D Thread | Thread Pitch (mm) | F (mm) |
| 6mm | 5.95mm | 25mm | 6.75mm | 8.74mm | M5 | 0.8mm | 6mm |
