Carr Lane CLM-58-SKS | 8mm Length Thinwall Key Insert

Carr Lane CLM-58-SKS | 8mm Length Thinwall Key Insert

SKU: 70024447

Precio habitual $9.17 USD
Precio habitual $9.17 USD Precio de oferta $9.17 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 0 Grams

Free Shipping on Orders Over $75

Ver todos los detalles

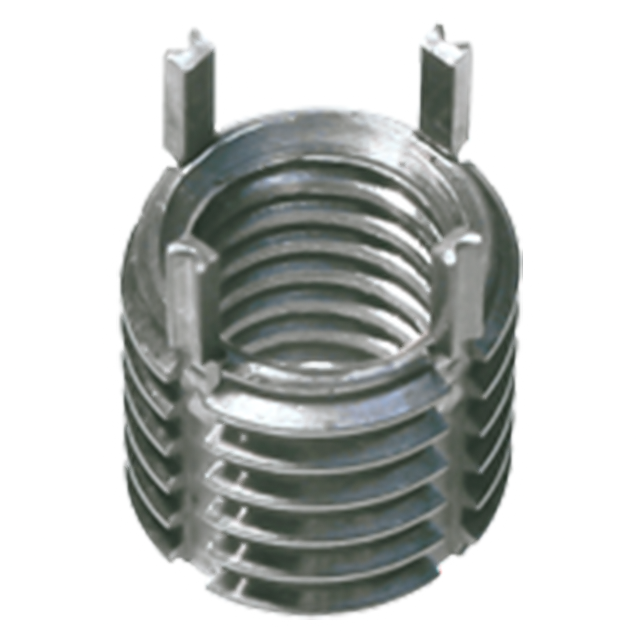

Key Inserts-Thinwall, Stainless Steel

Thinwall Key Inserts have a smaller OD thread size than standard heavy-duty inserts, ideal for tight spaces where less pull-out strength is acceptable. Key Inserts are ideal for thread reinforcement, especially when the mating stud or bolt will be removed frequently. These stainless inserts provide strong, permanent stainless steel threads in any parent material, ferrous, non-ferrous, or non-metallic. Key Inserts are also well suited for quick repair of stripped, damaged, or worn threads. Locking keys positively prevent the insert from rotating.

Application Information

Material

Item Material Heat Treat Finish RoHS
Body 303 Stainless Steel - -
Keys 302 Stainless Steel - -

Parts Specification

Internal Thread Internal Thread Pitch (mm) External Thread External Thread Pitch (mm) Length (mm) Shear Engagement Area (sq Mm)
M5 0.8mm M8 1.25mm 8mm 105 sqmm
