Slotted-Heel Clamp Straps
Heavy-duty steel version of the Slotted-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a slot underneath to slide straight back for clear loading. An indentation at the rear of each side provides a secure finger grip for retracting the clamp. Made in USA.
Application Information
Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading.

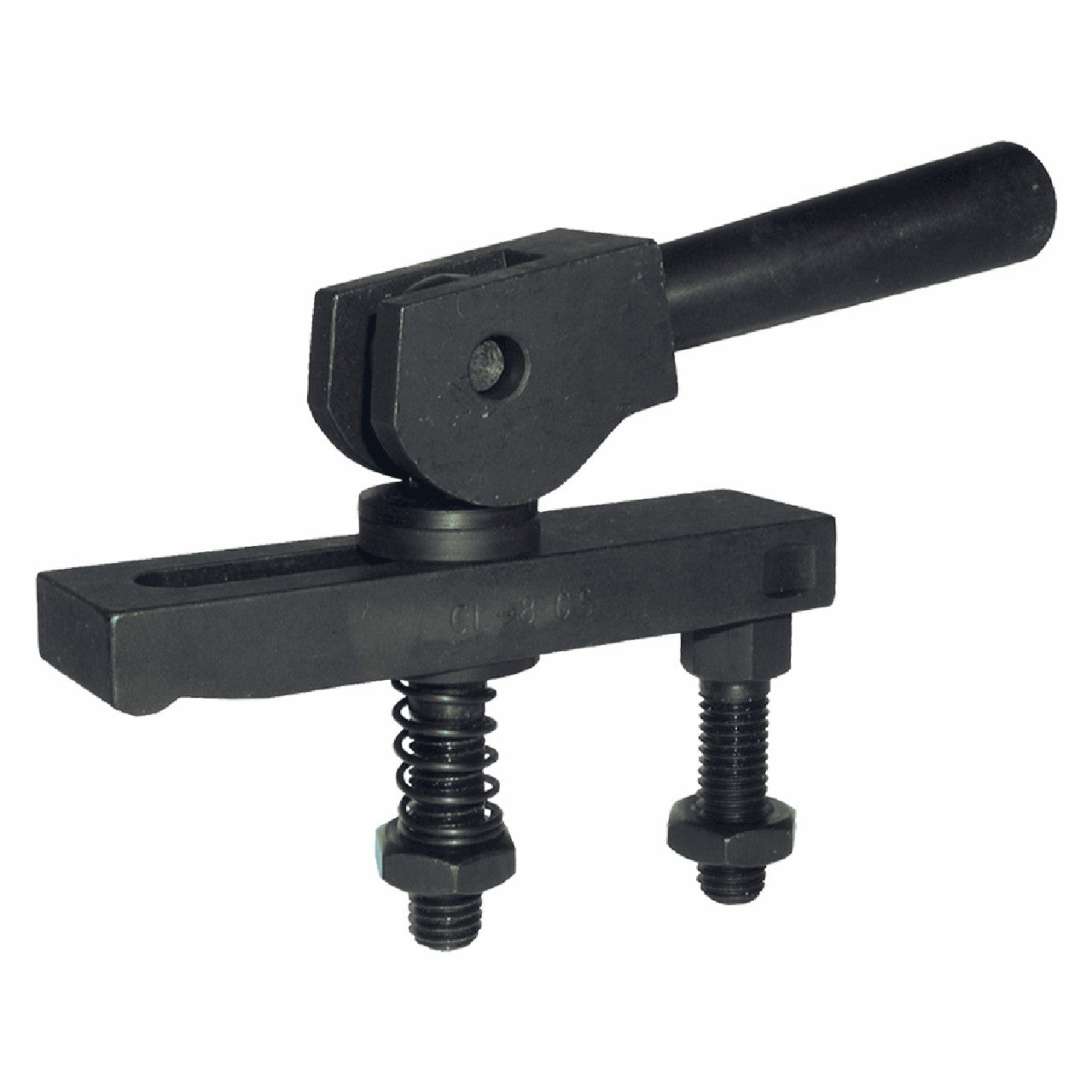

Assembly with Cam Handle & Spherical Washer
This clamp assembly includes a Slotted-Heel Clamp Strap plus the following items: Cam Handle, Spherical Washer, Eye Bolt, Clevis Pin, Clamp Spring, Flat Washer, Jam Nut, Clamp Rest
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Thread Size | Thread Pitch (mm) | A (mm) | B (mm) | C (mm) | E (mm) |
| M10 | 1.5 mm | 152 mm | 28.5 mm | 12.5 mm | 70.5 mm |
