Forged Adjustable Clamps

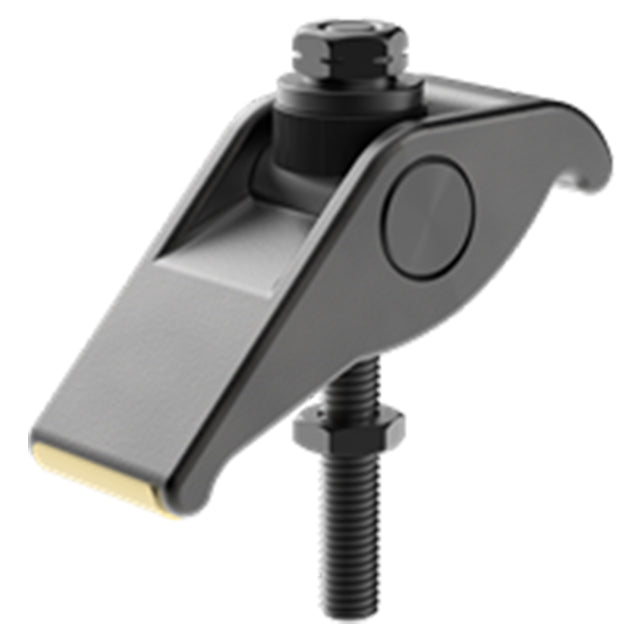

Rugged forged steel pivot clamp. Provides instant height adjustment without blocks or shims. All-in-one construction allows quick setup and eliminates lost clamp pieces.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | Forged 1045 Steel | - | Black Oxide | Yes | Yes |
| Clamp Pivot | Mild Steel | - | Black Oxide | Yes | Yes |
| Removable Heel Pad | Brass | - | - | Yes | Yes |
Parts Specification
| Stud Size | Thread Pitch (mm) | Clamping Range (mm) | B (mm) | C (mm) | D (mm) | H (mm) | J (mm) | K Diameter (mm) | L Min (mm) | L Max (mm) | M Min (mm) | M Max (mm) | Forged Adjustable Clamp (Included) | Fully Threaded Stud (Included) | Flange Nut (Included) | Jam Nut (Included) |
| M8 | 1.25mm | 0 to 44mm | 83mm | 32mm | 22mm | 54mm | 10mm | 19mm | 27mm | 32mm | 44mm | 51mm | CL-6-FAC | CLM-8x80-FTS | CLM-8-FN | CLM-8-JN |
