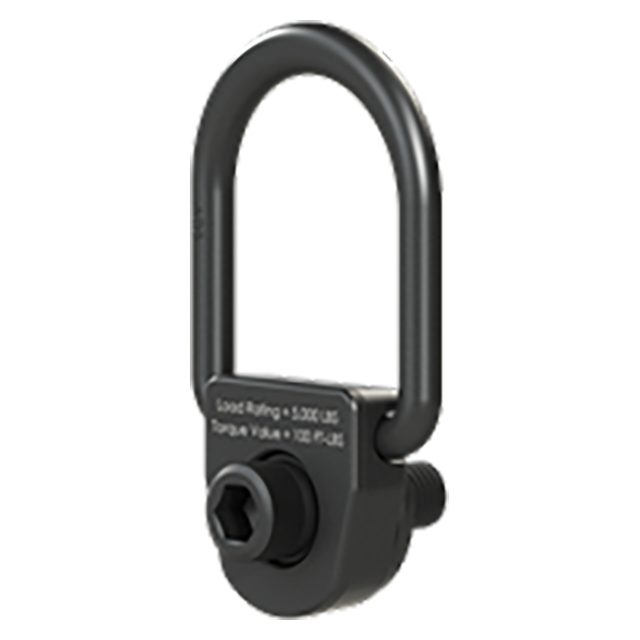

Heavy-Duty version of our Side-Pull Hoist Rings offers greater load capacity in a given mounting-thread size. The D-ring type shown here is ideal for working with web slings. Side-Pull Hoist Rings are ideal for side mounting. Flip and turn loads without unhooking, by using a spreader bar. Forged alloy-steel ring pivots 180 Degree and swivels 360 Degree simultaneously to allow lifting from any direction. Made in USA.
Application Information
Side-Pull Hoist Rings can be used to flip and turn loads without unhooking (use with a spreader bar).
Installation
Fasten using the installation torque specified in the dimension table. Always install so that the hoist ring can pivot and swivel freely.
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH |
| Heavy-Duty Side-Pull Hoist Rings (D Ring) | Alloy Steel | Magnaflux Inspected | Black Oxide finish |
Parts Specification
| Load Rating (kg) | A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | K Dia (mm) | L (mm) | M1 (mm) | M2 (mm) | N (mm) | O (mm) | P (mm) | Installation Torque (n.m) |
| 400 kg | M8 | 1.25 mm | 22 mm | 34 mm | 13 mm | 14 mm | 130 mm | 37 mm | 99 mm | 56 mm | 6 mm | 81 mm | 87 mm | 32 mm | 139 mm | 117 mm | 9.5 N.m |
