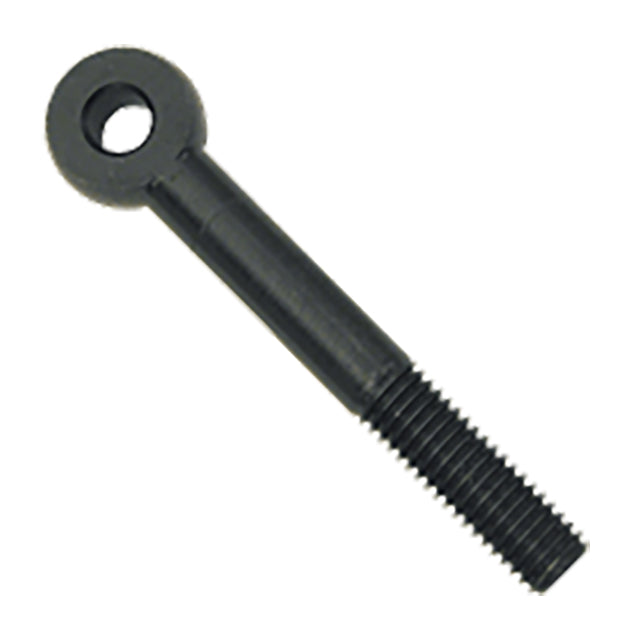

High-strength Eye Bolt with a reamed bearing hole. Fully machined from solid barstock. Made in USA.
Application Information
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Eye Bolts | 1144 steel, 115,000 psi min tensile strength, 100,000 psi min yield strength | - | Black Oxide | ✔ | ✔ |
Parts Specification
| A Thread | Thread Pitch (mm) | D Dia (mm) +.05/-.00 | B (mm) | C (mm) | E (mm) | F (mm) +.00/-.13 |
| M10 | 1.5 mm | 10 mm | 100 mm | 50 mm | 20 mm | 10 mm |
