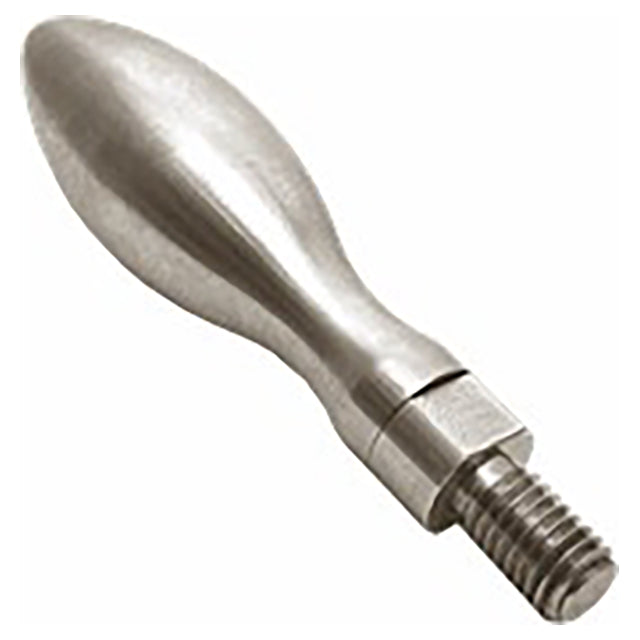

Revolving Handles-Rounded Design, Threaded
Attractive rounded-design handle made of stainless steel with a polished finish. Revolving Handles have an internal bearing that allows the handle to remain fixed in your hand, for firm gripping while turning a Hand Wheel or crank.
Application Information
Revolving Handles can be used to make custom crank handles.
Material
| Material | Heat Treat | Finish | RoHS |
| 300-Series Stainless Steel | Yes | Yes | Yes |
Parts Specification
| Handle Size | A (mm) | B (mm) | C Thread | Thread Pitch (mm) | D Diameter (mm) | E Diameter (mm) | F (mm) | G (mm) |
| Size 3 | 71mm | 14mm | M8 | 1.25mm | 21mm | 13mm | 9.5mm | 7mm |
