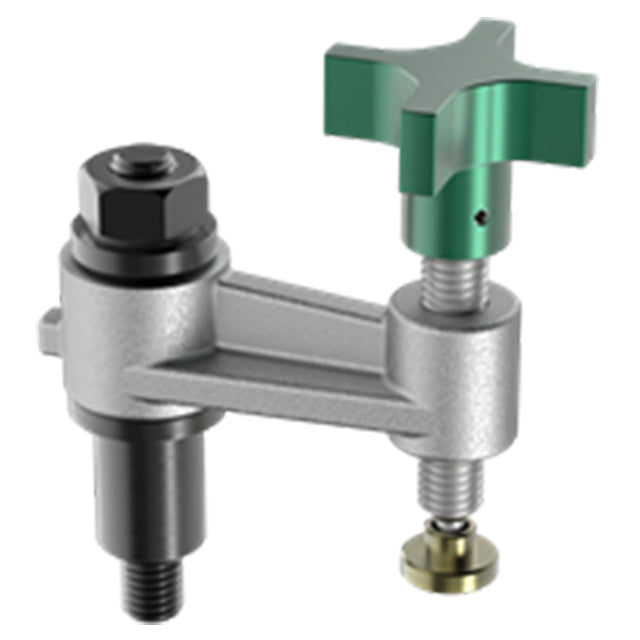

Swing Clamp Assembly
Long-reach swing clamp that can be hand tightened for medium clamping force. This post-mounted version is ideal for tight spaces, with a long mounting post for increased strength. Install in a reamed hole.
Application Information
Swivel Foot
Swing Clamp Assemblies use patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental back out during use.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Swing Arm | Nodular iron per ASTM A536 grade 65-45-12 | - | Zinc Plated Clear Chromate | Yes | Yes |
| Post and Flange Base | Mild Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| D Thread Size | Thread Pitch (mm) | A (mm) | B (mm) | C Diameter (mm) | E (mm) | F (mm) | G (mm) | H Diameter (mm) | J (mm) | K (mm) | L (mm) | N (mm) | Q Thread | S (mm) | U Diameter (mm) | V Diameter (mm) | W (mm) | Y (mm) | Z (mm) |
| M16 | 2mm | 102mm | 39.5mm | 28mm | 45.5mm | 33.5mm | 122.5mm | 24mm | 70mm | 5.5mm | 22.5mm | 39.5mm | 5/8-11 | 5.5mm | 33.5mm | 44.5mm | 38mm | 2.5mm | 17mm |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
