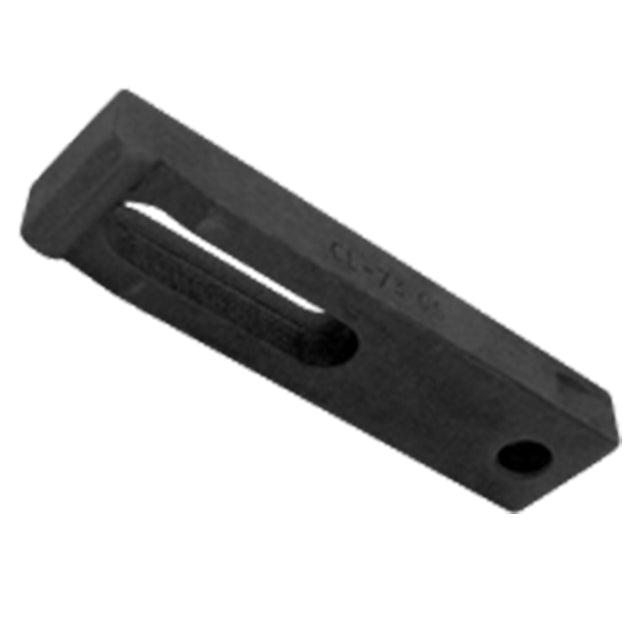

Tapped-Heel Clamp Straps
Heavy-duty steel version of our Tapped-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut. An indentation at the rear of each side provides a secure finger grip for retracting the clamp.
Application Information
Tapped-Heel Clamp Straps have a tapped hole that accepts either a clamping screw for use with a slotted guide block, as shown here, or an adjustable rear support.
Assembly with Leveling Foot (-LF)
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Stud Thread | Thread Pitch (mm) | A (mm) | B (mm) | C (mm) | L (mm) |
| M20 | 2.5 mm | 152 mm | 44.5 mm | 25.5 mm | 63.5 mm |
