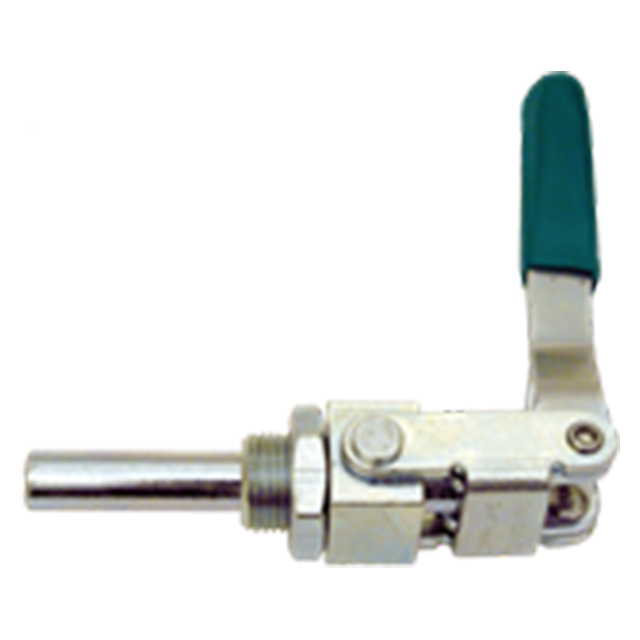

CL-250-TPC Series-300lbs.
Tapped Plunger
Compact plunger clamp for mounting through panels, plates, or angle brackets. Install in a 3/4"-Diameter (Inch)meter drilled hole or a 3/4-16 tapped hole (M20x1.5 in metric), securing with the locknut provided. Rotate clamp to position handle anywhere within 360°. Locks in extended or retracted position. 1-1/2" plunger travel. Plunger is tapped to accept any 5/16-18 spindle (M8 in metric).
Clamping Action
Clamped Position (Push)
Open Position (Push) and Clamped Position (Pull)
Accessories
An optional steel mounting bracket for flanged mounting.
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1215, 1008, 1010, and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Tapped Hole In Plunger | Plunger Thread Pitch (mm) | Body Thread | Body Thread Pitch (mm) | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Tapped Plunger, Threaded Body | M8 | 1.25mm | M20x1.5 | 1.5mm | 300lbs. | 0.7lbs. |
